feat(hubble): modernize graph workbench experience

[imbajin]

What this PR delivers

This PR turns Hubble into a cohesive graph workbench with native operations, centralized
authorization context, safer credential handling, and recoverable end-to-end journeys. Native
monitoring no longer depends on Dashboard or Grafana; Dashboard remains an optional advanced
entry.

Product and workflow modernization

• Unifies navigation and GraphSpace/graph context across graph management, Schema, Gremlin,
  algorithms, async tasks, data sources/import, accounts, profile, and Operations.
• Connects the primary journeys from workspace onboarding through Schema/data preparation,
  query, result inspection, and task recovery; direct URLs and legacy aliases now resolve to a
  stable destination or an actionable error state.
• Adds consistent loading, empty, partial, stale, unsupported, error, retry, and canonical-back
  states, plus keyboard focus, accessible names, localized status text, and responsive desktop
  layouts.
• Completes a fresh inventory of all 30/30 production routes; current audit result is
  P0 = 0, P1 = 0, with no unresolved actionable P2.

Native cluster Operations

• Adds capability-protected Cluster Overview, Nodes, and Node Detail routes.
• Aggregates existing Server, PD, and Store facts into stable allowlisted DTOs with per-source
  freshness, bounded caches/fan-out, response limits, timeouts, and explicit partial/stale state.
• Covers 3/30/300-node topology behavior, PD Leader changes, node filtering/search/pagination,
  and independent system/drive/Raft/backend metric groups.
• Preserves healthy sources when Server, PD, Store, or one Store is unavailable; an unavailable
  Dashboard never blocks native monitoring.

Authorization and security contract

Area	Current behavior
Roles	Backend emits one minimal SUPERADMIN / SPACEADMIN / USER capability/action context; the frontend does not infer security permissions from role names or cached flags.
Operations	Only SUPERADMIN can access cluster Operations; standalone ADMIN maps through the backend compatibility context, while standalone USER remains restricted.
GraphSpace administration	SPACEADMIN can manage only members, roles, targets, and grants inside assigned spaces; global account/space operations remain SUPERADMIN-only.
Credentials	Hubble does not retain login passwords or issue user tokens. Loader retry/resume rebuilds credentials from the current authenticated context instead of persisting them in task metadata.
Isolation	401/403, direct URL denial, downgrade, same-origin account switching, stale responses, browser-cache partitioning, IDOR, foreign-role/target injection, and scoped mutations are covered.
Disclosure boundaries	Passwords, tokens, authorization/cookie headers, service secrets, private keys, upstream paths, raw queries, and internal exception details are removed from DTOs, DOM, logs, and public errors.
Internal services	PD/Store access stays behind Hubble with explicit target allowlists, trusted discovery, DNS/SSRF checks, bounded reads, and secret-safe diagnostics.

Deployment compatibility

• Supports both PD-backed deployments and authenticated standalone Server deployments.
• Standalone mode has bounded graph-profile fallback, ADMIN/USER account metadata compatibility,
  localized unsupported PD/Store states, and token-authenticated Gremlin execution.
• The matching Server/PD/Store compatibility changes are in
  hugegraph/hugegraph#161.
• This PR intentionally does not add a complete alert engine, notification channels,
  historical time-series storage, mobile layouts, or production capacity policy.

UI evidence

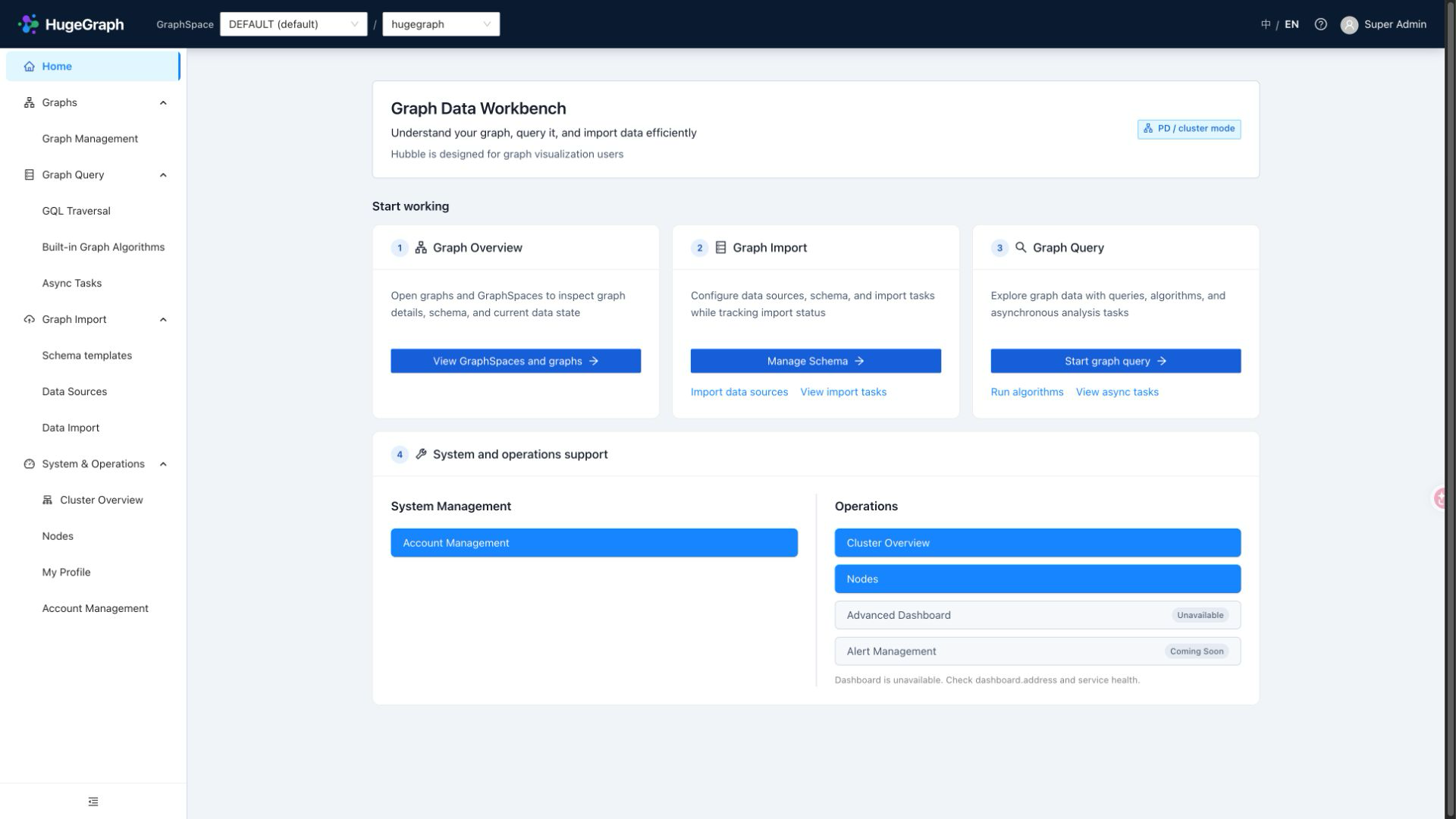

• Workbench navigation

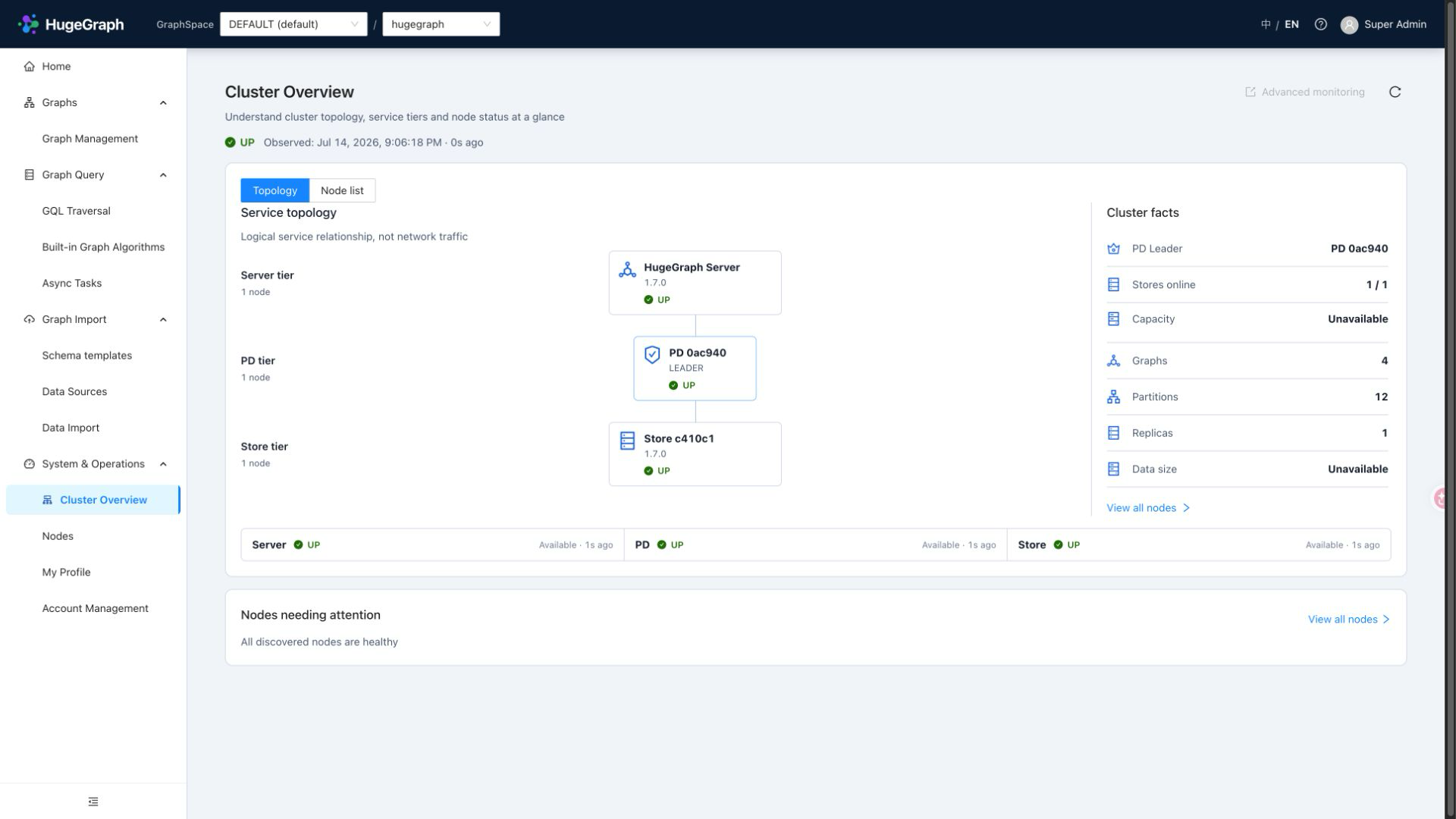

• Cluster Overview
• Nodes

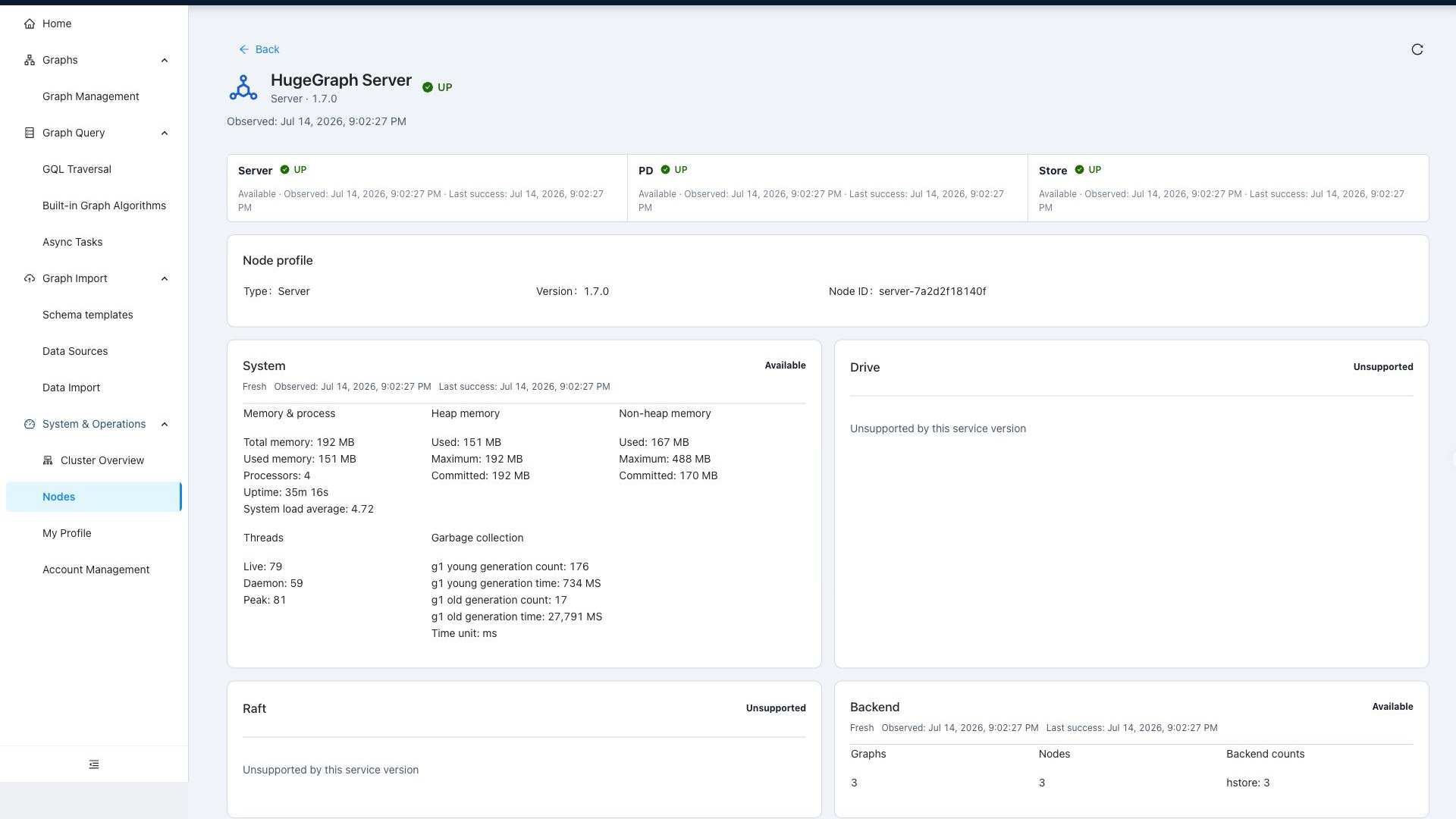

• Node Detail

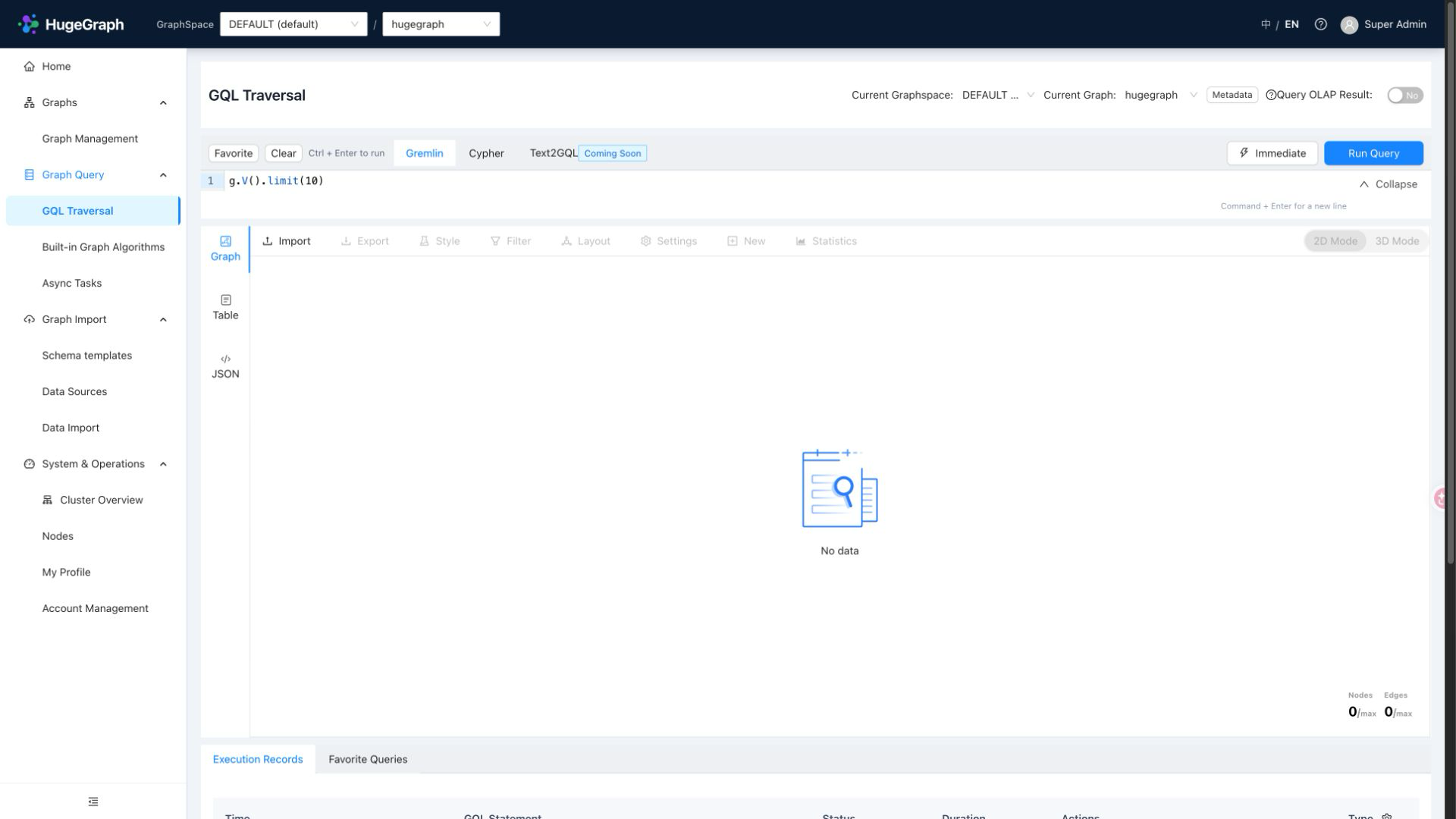

• Graph Query

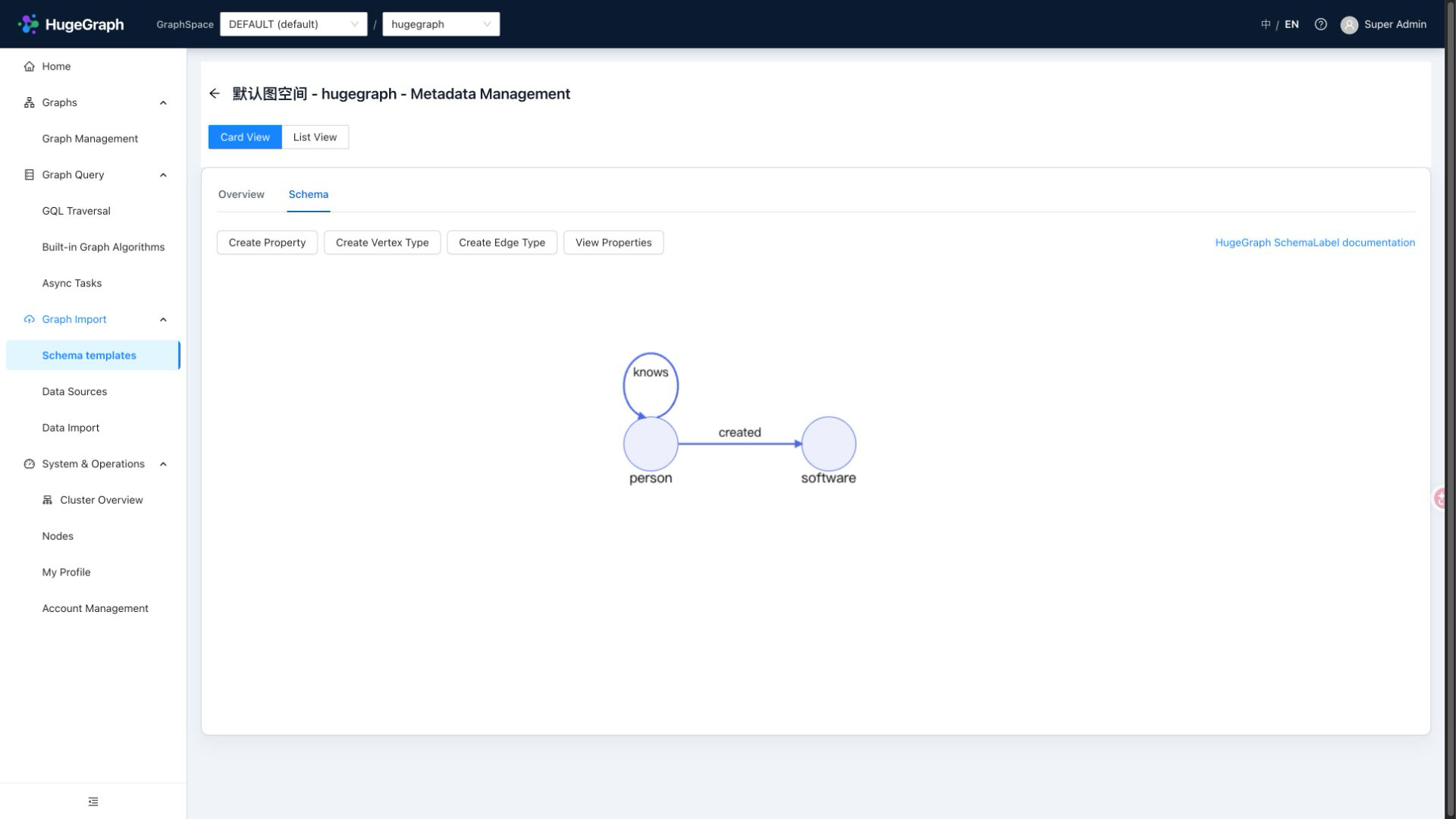

• Graph Schema

Real Chrome validation covers PD and standalone deployments, role/login switching, source
failure/recovery, and five desktop viewports: 1280×720, 1366×768, 1440×900, 1920×1080, and
2560×1440.

Verification — current head ec034d0a

• Hubble frontend: 135 suites / 730 tests passed; ESLint passed; zh-CN/en-US parity
  2239/2239 keys with 1525 statically referenced keys; production build passed.
• Hubble backend affected/full profiles, Java Client unit suite, Checkstyle, RAT/license checks,
  and cross-module regression gates passed.
• Hubble package/distribution passed: 417 JARs, 275 license files, 43 frontend license files, and
  10 native-bearing JARs; release tarball SHA-256:
  600a5283f1f576a26227549d783ad11adfa93b84ed2073cd6c8d32d0c02aef06.
• GitHub: 14/14 checks passed, merge state CLEAN, and 61/61 review threads resolved.
• Final independent read-only review and targeted re-review: Critical 0 / Important 0 / Minor 0.

[gemini-code-assist]

Code Review

This pull request introduces significant enhancements to the HugeGraph Hubble platform, including a new operations monitoring dashboard, improved authentication and authorization scopes for graph spaces, and refined data import workflows. Key changes include the addition of a LiveOperationsCollector for real-time metrics, enhanced permission checks in BaseController and AccessService, and improved error handling with new exception types. Additionally, the UI has been updated with a new navigation structure, a graph context switcher, and updated i18n resources. I have reviewed the code and suggest addressing the potential type safety issue in GraphsService.java as noted in the feedback.

Important

The consumer version of Gemini Code Assist on GitHub is being sunset. Starting June 18, 2026, new organization installations will be blocked, and all code review activity will officially cease on July 17, 2026.
For more details on the timeline and next steps, please review the Help Documentation.

[bitflicker64]

Bug: GQL Traversal fails with JWT; UI force-logs out

Branch tip tested: cx-hubble-ui-ux2-pr @ dcc402e5
Env: local Hubble (pd.enabled=false, server.direct_url=http://127.0.0.1:8080) · Server hugegraph/hugegraph:latest with PASSWORD=admin · login admin/admin · EN · graph hugegraph
Tester: Bitflicker · 2026-07-15

Symptom

After login, GQL Traversal (Gremlin) on a valid query e.g. g.V().limit(10) shows “Query failed. Review the statement…” and the UI force-logs out. Re-login → same loop (also without long idle).

Root cause (verified, not tester setup)

Call	Auth	Result
REST /graphs, vertices	JWT Bearer	200
POST /gremlin	same JWT Bearer	401
POST /gremlin	Basic admin:admin	200

Hubble always uses the login token (Bearer) for Gremlin. FE treats any status: 401 as session dead → logout + misleading “review statement” copy.

API check: Hubble POST …/gremlin-query → body status: 401, message like Gremlin execute failed… HTTP 401.

Product gaps

1. Server: /gremlin rejects JWT while other authenticated REST accepts it.
2. Hubble: maps query 401 → force logout + blames the statement.

[bitflicker64]

Quick correction — Gremlin JWT retest (clean stack)

After the force-logout fix was pushed, I retested and thought Gremlin was fully working. That was a misread on my side. My temporary local proxy was still on (Mac :8080 rewrote only /gremlin Bearer → Basic for testing), so queries succeeded because of that workaround, not because Server accepted JWT.

I’ve since cleaned the stack, re-pulled hugegraph/hugegraph:latest, retested Hubble on cx-hubble-ui-ux2-pr @ 0037301d, reloaded sample data, proxy off, plain tunnel only.

What I’m seeing on a clean retest

Check	Result
REST (e.g. /graphs) + JWT Bearer	OK
Gremlin POST /gremlin + JWT Bearer	still 401
Gremlin + Basic	auth OK
Hubble Gremlin	fails, but session stays logged in
UI message	clearer after the recent commit: Server rejected query authentication… session still active…

So the commit looks right for the force-logout / bad error copy side. I was wrong to treat “query works” as fixed while the proxy was still masking Server.

What I came up with (please verify)

This is my current read — please double-check, I may still be missing something:

1. Hubble half (recent commit): remapping upstream Gremlin auth failure so it is not treated as Hubble session expiry → looks correct; force logout is gone; message is much clearer.
2. Server half (still open on my side): same login JWT works on REST (and Cypher with Bearer works for me), but POST /gremlin still rejects Bearer while Basic works → so Gremlin may be on a different auth path than other APIs.
3. Earlier “Gremlin works after the push” was proxy still on, not Server JWT fixed.

Question

Does this match how you see it?

• Hubble UX for this case: done on 0037301d?
• Remaining product work: Server should accept JWT on /gremlin (same as REST/Cypher)?

If this conclusion is wrong, tell me what I’m missing and I’ll retest that way.

Env (clean): local Hubble pd.enabled=false · server.direct_url=http://127.0.0.1:8080 · library hugegraph/hugegraph:latest core 1.7.0 · PASSWORD=admin · admin/admin · EN · graph hugegraph · sample data loaded · no local auth proxy

[imbajin]

Verified. The clean-stack conclusion is:

• Hubble session handling was already correct: an upstream query-auth 401 is mapped to a non-session business failure, so the Hubble login remains active.
• The remaining /gremlin Bearer gap was in Server's Gremlin HTTP authentication path. The handler authenticated the token but discarded the returned identity instead of storing it in the channel StateKey.AUTHENTICATED_USER.
• The Server fix is now pushed in feat: support secure Hubble monitoring targets hugegraph#161 at 5b082f8da (native Bearer support; no Bearer-to-Basic proxy or fallback).
• On fresh independent RocksDB and HStore stacks, with the proxy disabled, REST Bearer, Gremlin Bearer, and Gremlin Basic all returned HTTP 200.
• Toolchain follow-up e89f7931 also adds direct Cypher upstream-401 coverage, async error-ownership coverage, and query/layout regression tests.

The locally built clean-stack runtime covered the authentication behavior; CI is now running against the exact pushed heads. Chrome confirmed login plus DEFAULT/hugegraph context readiness, but the automation control surface did not dispatch the query-page React action, so I am not treating that browser attempt as additional query-success evidence.
