feat(chart): React-native tooltip for TimeseriesChart

[Ankcorn]

Why

The existing tooltip was built on ECharts' HTML-string formatter — inline styles, any types everywhere, getComputedStyle called on every mouse move to read CSS variables, and a dead dimColor variable that was computed but never used. It also couldn't escape its containing element, so tooltips were clipped when the chart was inside a constrained layout.

What changed

Tooltip is now a proper React component rendered via createPortal into document.body, wrapped in a data-mode div so Kumo CSS variables resolve correctly despite being outside the component tree.

Positioning is decoupled from content (same architecture as ECharts' own implementation):

• Content flows through React state via the updateAxisPointer event — one render cycle behind, imperceptible for text
• Position is driven by direct DOM mutation in a native mousemove listener using transform: translate3d (GPU-composited, no layout cost). Quadrant-based anchoring flips the tooltip side when the cursor crosses the chart midpoint, with a cubic-bezier(0.23,1,0.32,1) transition on switches.

New props:

• tooltipMode: "all" (default) | "single" — single mode shows only the series nearest the cursor, useful for dense charts
• tooltipMaxItems: caps rows in "all" mode with a +N more footer (default 10)

Other improvements:

• Values sorted descending so the highest series appears first
• Date formatted as May 26, 13:04:21 instead of ISO string
• Fallback value formatter uses toLocaleString — no scientific notation
• findNearest binary search replaces ECharts series index lookup

Alternatives considered

Keeping ECharts' formatter but injecting computed CSS variable values — simpler but still getComputedStyle on every hover, still HTML strings, still no real types.

---

• Reviews
• bonk has reviewed the change
• automated review not possible because: tooltip behaviour is visual/interactive, not unit-testable without a browser
• Tests
• Additional testing not necessary because: covered by the new ManySeriesChartDemo in the docs site which exercises truncation, formatting, and positioning

[pkg-pr-new]

npm i https://pkg.pr.new/@cloudflare/kumo@537

commit: f82370a

[github-actions]

Docs Preview

View docs preview

Commit: f82370a

[github-actions]

Visual Regression Report — 16 changed, 23 unchanged

16 screenshot(s) with visual changes:

Button / With Icon

422 px (0.42%) changed

Before	After	Diff

Button / Loading State

193 px (0.19%) changed

Before	After	Diff

Button / Disabled State

232 px (0.23%) changed

Before	After	Diff

Button / Link as Button

745 px (0.73%) changed

Before	After	Diff

Dialog / Dialog Alert

744 px (0.73%) changed

Before	After	Diff

Dialog / Dialog With Dropdown

130 px (0.13%) changed

Before	After	Diff

Select / Select Basic

534 px (0.53%) changed

Before	After	Diff

Select / Select Without Label

161 px (0.16%) changed

Before	After	Diff

Select / Select With Description

889 px (0.75%) changed

Before	After	Diff

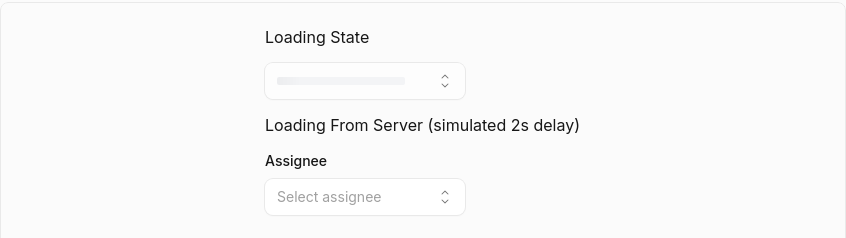

Select / Select Loading

0 px (0%) changed

Before	After	Diff

Select / Select Complex

1,090 px (0.92%) changed

Before	After	Diff

Select / Select Disabled Items

176 px (0.17%) changed

Before	After	Diff

Select / Select Grouped

194 px (0.19%) changed

Before	After	Diff

Select / Select Grouped With Disabled

736 px (0.72%) changed

Before	After	Diff

Select / Select Long List

1,683 px (1.42%) changed

Before	After	Diff

Select (Open)

0 px (0%) changed

Before	After	Diff

23 screenshot(s) unchanged

• Button / Basic
• Button / Variant: Primary
• Button / Variant: Secondary
• Button / Variant: Ghost
• Button / Variant: Destructive
• Button / Variant: Outline
• Button / Variant: Secondary Destructive
• Button / Sizes
• Button / Icon Only
• Button / Title
• Dialog / Dialog With Actions
• Dialog / Dialog Basic
• Dialog / Dialog Confirmation
• Dialog / Dialog With Select
• Dialog / Dialog With Combobox
• Dialog (Open)
• Select / Select Sizes
• Select / Select With Error
• Select / Select Placeholder
• Select / Select With Tooltip
• Select / Select Custom Rendering
• Select / Select Multiple
• Select / Select Disabled Options

---

Generated by Kumo Visual Regression

[geoquant]

/bonk review

[ask-bonk]

UnknownError: ProviderInitError

github run

[ask-bonk]

@mattrothenberg Bonk workflow was cancelled.

View workflow run · To retry, trigger Bonk again.

[mattrothenberg]

/bonk what do you think of these changes?

[mattrothenberg]

/bonk please thoroughly review our changes here, looking for subtle API breakages, performance issues, etc

[ask-bonk]

I fetched the PR diff, read all changed files plus the base EChart.tsx component, investigated Base UI Tooltip type definitions to verify trackCursorAxis/collisionAvoidance API compatibility, confirmed ECharts lowercases event names internally (so updateaxispointer is correct), ran the workspace typecheck, and cross-checked semantic token usage against existing Kumo components to prepare a thorough review.

github run
