NCCL M2N collective refit — design
Design only. No implementation code in this PR.
ModelExpress has one RL refit data plane today: the receiver-driven NIXL pull in
modelexpress/refit/reshard/. This adds a design for a second one — a sender-driven NCCLcollective push built on
nccl.m2n.reshard— as a sibling of that path rather than amode of it.
The design itself is in
docs/NCCL_M2N_REFIT.md.Implementation follows this design in order: #661 lands the server control plane, #665 the client control plane, and #666 the data plane that actually moves weights.
The NeMo RL integration that selects this transport is NVIDIA-NeMo/RL#3720.
Separation from NIXL is structural, not a flag
Nothing on this path imports NIXL, and nothing on the NIXL path imports this:
modelexpress_common/proto/refit_collective.proto, new serviceRefitCollectiveServicemodelexpress_server/src/refit/modelexpress_rl/collective/packageRegisterWorkerand theWeightVersionlifecycle from the mergedrefit.proto— none of the pull-path vocabulary (WeightVersionShard,VersionLease,RefitWorkerService)One deployment configures one backend. No runtime transport ranking, no NIXL fallback.
Figures

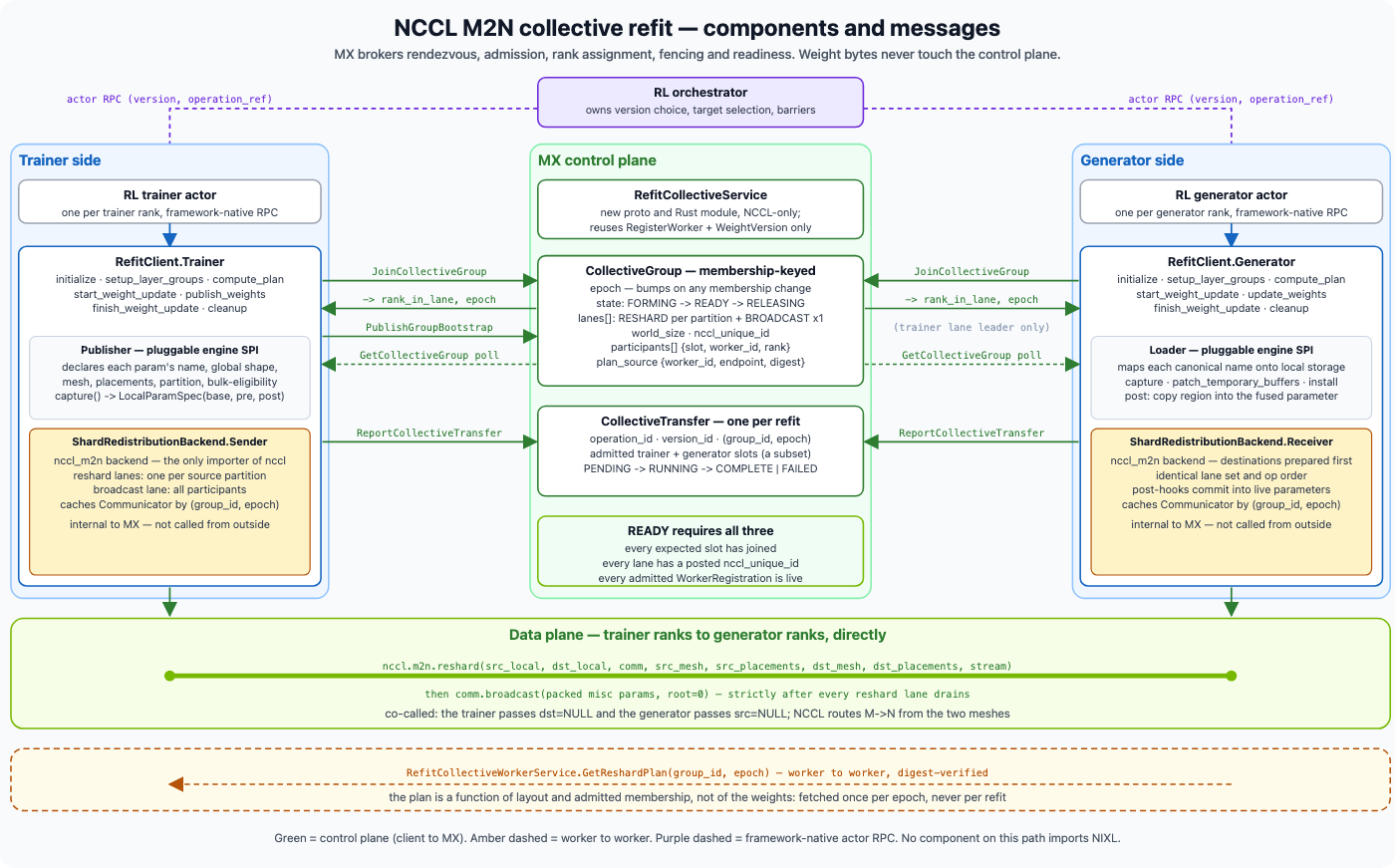

Components and messages — which side owns what, and the actual call on each edge.

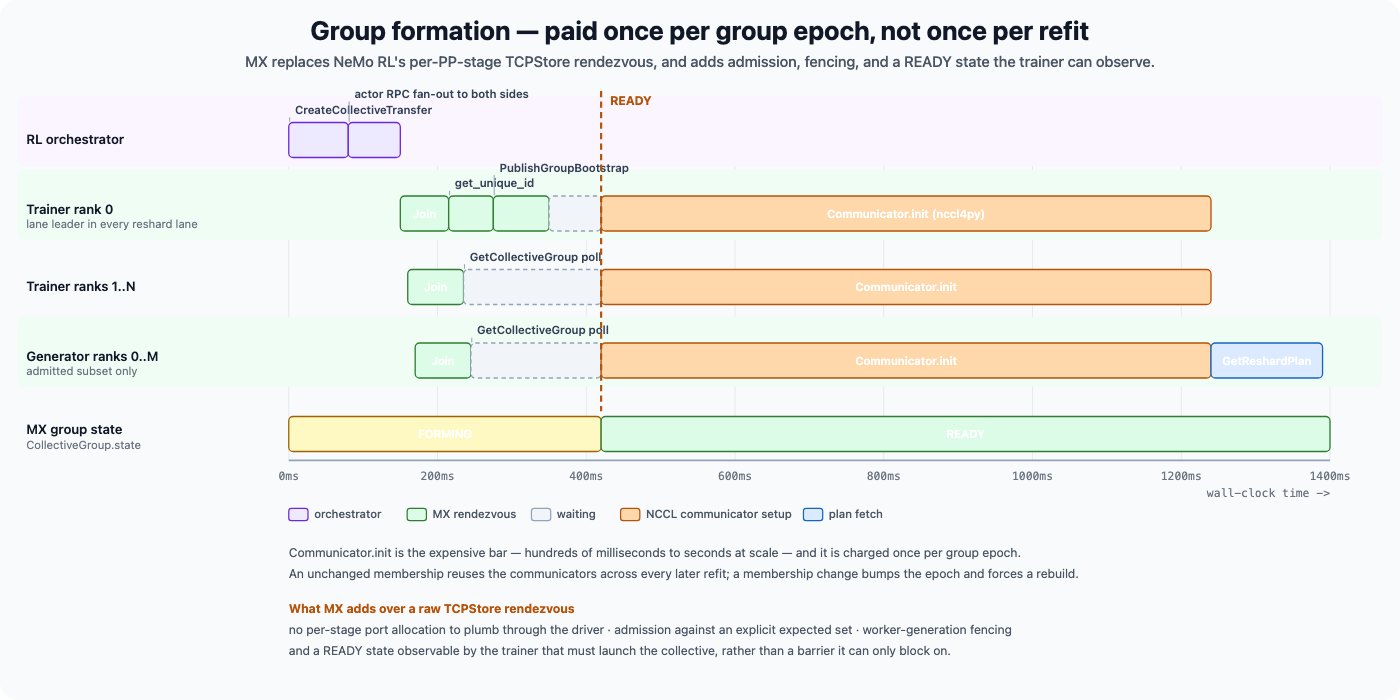

Group formation — why the NCCL communicator setup is charged once per group epoch and not once per refit.

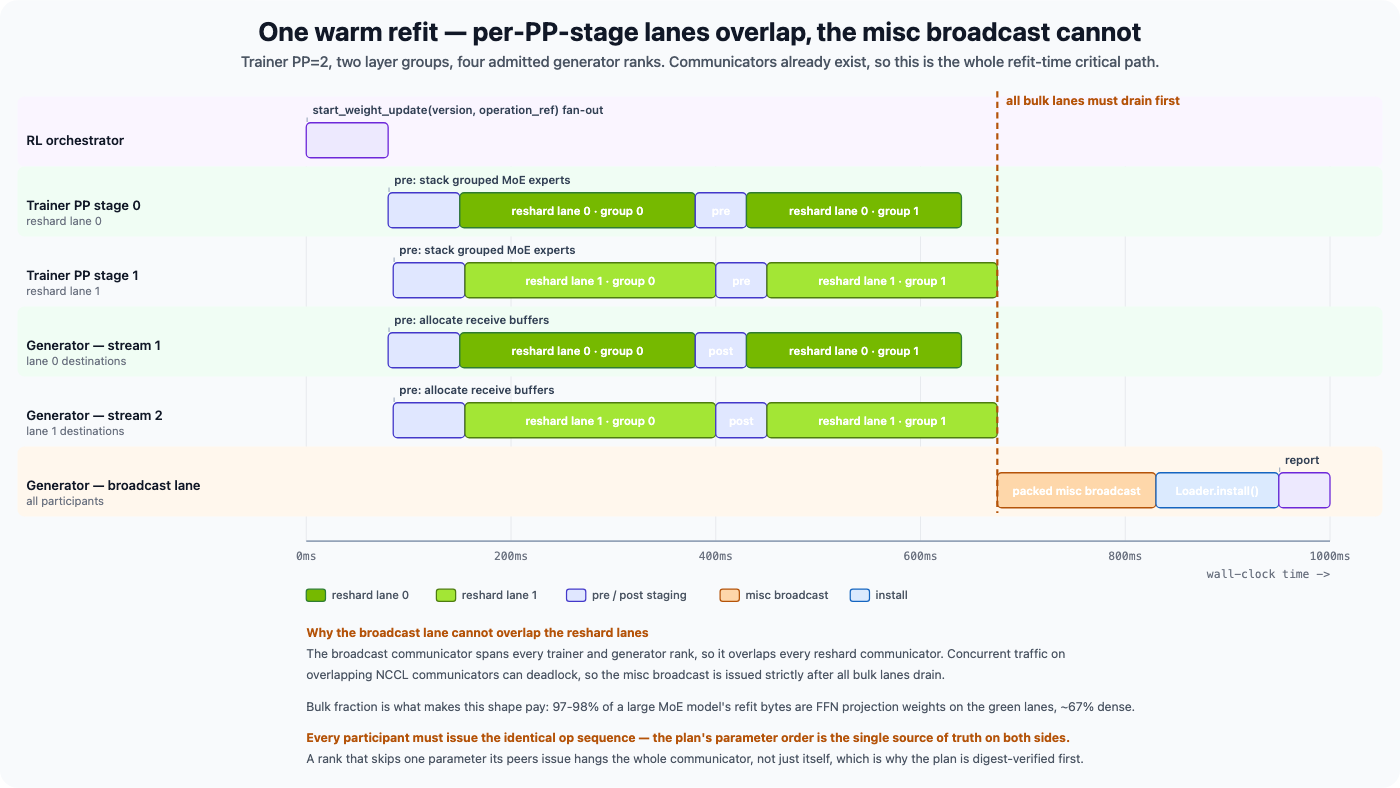

One warm refit — per-PP-stage lanes overlapping, and why the trailing broadcast cannot overlap them.
Prior art
The wire contract is adopted unchanged from NVIDIA-NeMo/RL#2971
(
nccl_reshard_refit, merged 2026-07-29), so an MX-brokered deployment and a NeMo-RL-nativedeployment move identical bytes. What MX adds is the rendezvous, admission, rank assignment,
fencing, and a readiness state — see the doc.
What's not here
No implementation. The doc proposes six slices (control plane, torch-free plan core,
rendezvous client, backend, two-sided clients, tests) so the shape can be agreed before any
code lands. Engine adapters stay out even then — they need real engines to validate.
Summary by CodeRabbit
