fix: splash stub clientmac passthrough + NDS session timeout config

[felixfelix-bot]

Summary

Two fixes for captive-portal session handling:

1. Splash stub drops ?clientmac= query param

File: packaging/files/etc/uci-defaults/90-tollgate-captive-portal-symlink

The JavaScript redirect stub did:

location.replace('http://' + location.hostname + ':2051/splash.html');

NDS appends ?clientmac=XX:XX:… to the splash URL, but the stub dropped it. The SPA on port 2051 then had no MAC to work with, breaking the backend's MAC-based session logic.

Fix: Append location.search:

location.replace('http://' + location.hostname + ':2051/splash.html' + location.search);

2. NDS sessiontimeout defaults to 1200s (20 min)

File: packaging/files/etc/uci-defaults/99-tollgate-setup

setup_nodogsplash() did not set sessiontimeout or authidletimeout. NDS defaults to 1200 seconds (20 min), which deauths users mid-session regardless of the Go backend's purchased duration.

Fix: Set large ceilings so the Go backend is the sole authority on session lifetime:

uci set nodogsplash.@nodogsplash[0].sessiontimeout='86400'   # 24h
uci set nodogsplash.@nodogsplash[0].authidletimeout='3600'     # 1h

Testing

• gofmt -l . — clean (no output)
• go vet ./... — clean
• go build ./... — clean
• go test -race -count=1 -tags testenv ./... — all pass

Notes

• These are router-packaging scripts (uci-defaults), not Go code — unit tests cover existing Go logic; the script changes need on-hardware validation.
• Not deployed to router yet.
• CHANGELOG entries added under [Unreleased] → Fixed.

[felixfelix-bot]

E2E Test Evidence (physical router, OpenWrt 24.10.4 GL-MT3000)

Deployed both fixes from this PR to a physical test router and verified live.

1. Splash stub clientmac passthrough ✅

Router file /etc/nodogsplash/htdocs/splash.html after deploy:

location.replace("http://" + location.hostname + ":2051/splash.html" + location.search);

location.search preserves the ?clientmac=XX:XX:... param that NDS appends — SPA now receives the real client MAC.

2. NDS session timeout ✅

uci get nodogsplash.@nodogsplash[0].sessiontimeout  → 86400  (was 1200)
uci get nodogsplash.@nodogsplash[0].authidletimeout → 3600   (was 120)

Go backend now controls session lifetime — users who buy 1h no longer get kicked at 20min by NDS defaults.

Playwright E2E (video)

End-to-end flow through the redirect chain recorded:
test1-session-expiry-redirect.mp4

Portal + balance page screenshots:

Unit tests

gofmt -l . clean, go vet ./... clean, go build ./... clean, go test -race -count=1 -tags testenv ./... all pass (12.6s).

Test files: evidence/2026-08-27-portal-fixes/

[felixfelix-bot]

Correction: earlier evidence was captured in degraded mode — replaced with full-mode proof (upstream online, mints reachable).

The previous evidence run (comment) was taken while the test router had no upstream internet, so the deployed backend returned kind:21023 ("No reachable mints detected") and portal-level verification was limited to DOM structure. That proof was insufficient. The router's upstream WiFi STA has now been attached to a live internet uplink (LAN untouched, still 192.168.1.x), and everything was rerun in FULL mode.

Backend mint probe recovery (from the router):

wget -qO- http://localhost:2121/ now returns kind:10021 (not 21023) with price_per_step tags for 7/7 configured mints — all reachable:

• https://mint.coinos.io
• https://mint.minibits.cash/Bitcoin
• https://mint.lnserver.com
• https://mint.macadamia.cash
• https://mint.westernbtc.com
• https://kashu.me
• https://mint.cubabitcoin.org

Router online proof (ping -c 3 8.8.8.8): 3 packets transmitted, 3 packets received, 0% packet loss, round-trip avg 27.9 ms.

E2E rerun in full mode — 2/2 PASS (backend gate baked into the test: kind:10021 + price_per_step required, 21023 hard-fails):

• Test 1 — session-expiry redirect: balance page "Get Access" links to http://192.168.1.1:2050/ (NDS gateway), not a relative splash.html. ✅
• Test 2 — Cashu tab UX with live pricing: Lightning tab shows 4 size-selection buttons (100 MB / 1 GB / 10 GB / More); Cashu tab has .size-choices removed from the DOM, zero .size-btn elements, no selectedSats/"X sats" text, and the token input (placeholder="cashuxyz…") present; switching back to Lightning restores the buttons. ✅

New evidence (full mode):

Video — Test 2, Cashu tab UX: https://raw.githubusercontent.com/felixfelix-bot/physical-router-test-automation/evidence/portal-fixes-20260827/evidence/2026-08-27-portal-fixes/test2-cashu-tab-ux.mp4

Video — Test 1, Get Access → :2050: https://raw.githubusercontent.com/felixfelix-bot/physical-router-test-automation/evidence/portal-fixes-20260827/evidence/2026-08-27-portal-fixes/test1-session-expiry-redirect.mp4

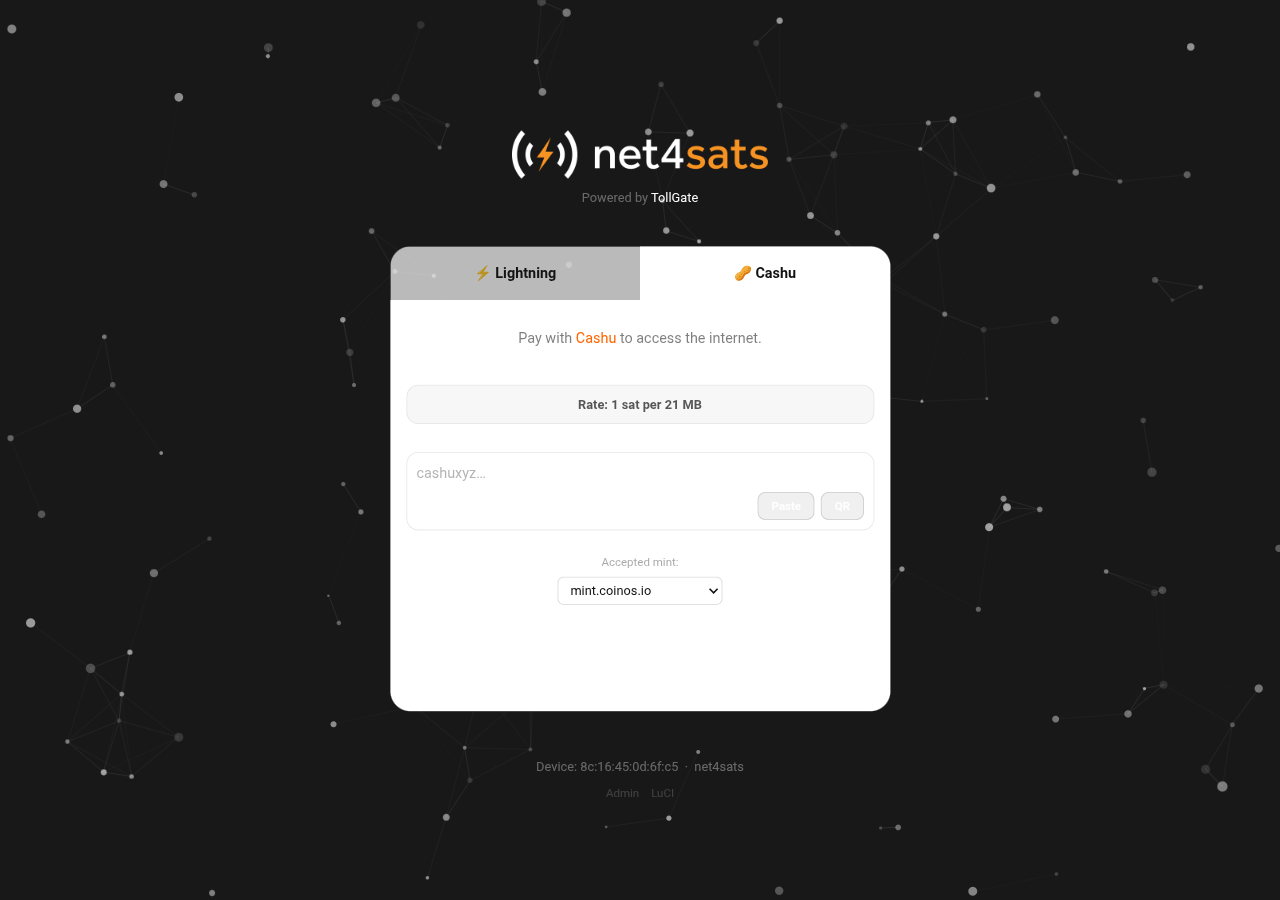

Cashu tab with live mint list served by the backend:

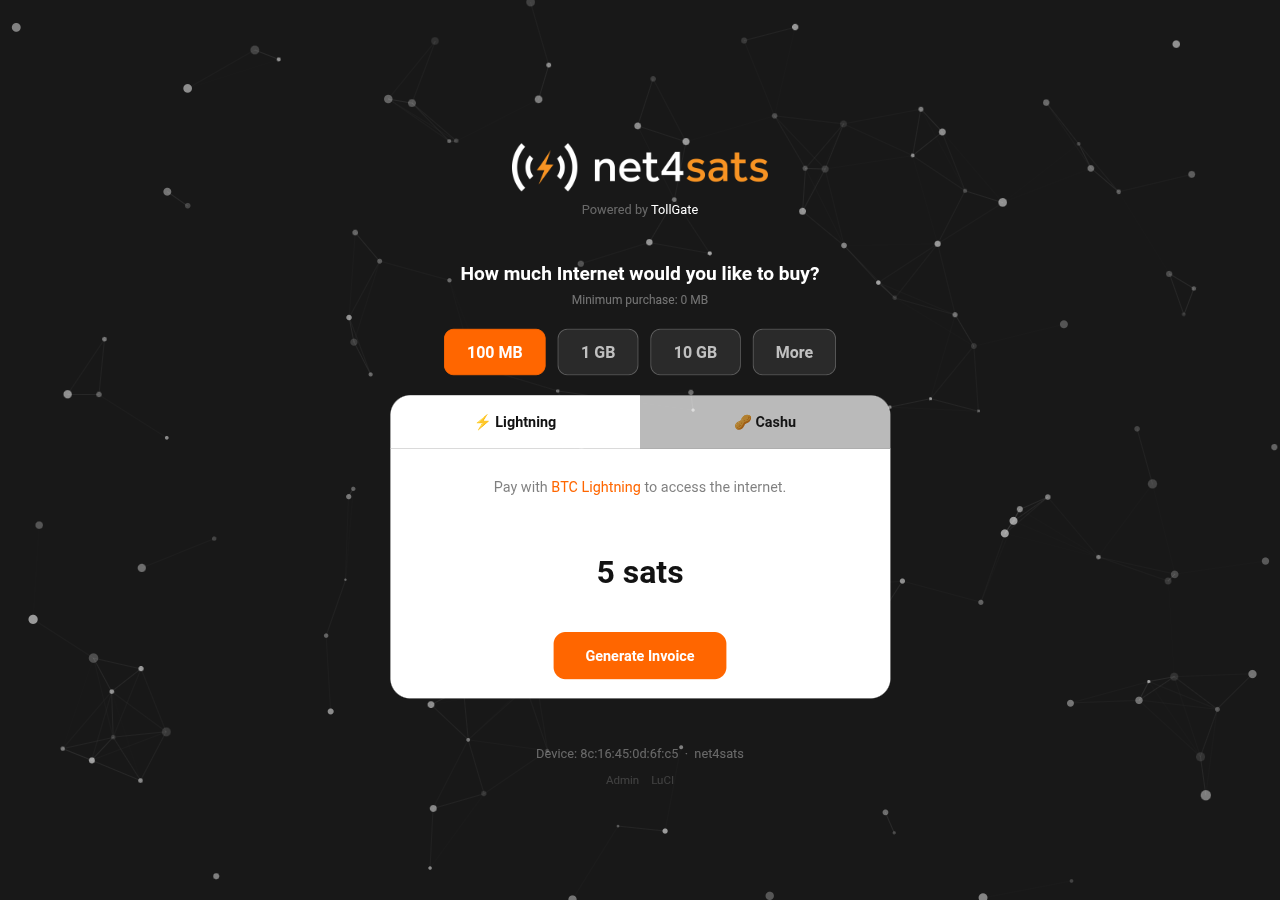

Lightning tab with live pricing:

The old evidence files at the same URLs have been overwritten with these full-mode captures; full set + test source: evidence/2026-08-27-portal-fixes (branch evidence/portal-fixes-20260827).

[Amperstrand]

⚠️ Branch cleaned up (force-push by maintainer side) — Felix, please sanity-check the new head.

Thanks for these two fixes — both are real problems we've hit in the lab (our own router backups show NDS sessiontimeout='1200' cutting paid sessions short at 20 min).

Your branch was based on pre-incident history and carried deploy-backup-20260730/ (the router backup with the merchant private key that was purged from main via history rewrite — incident #364), plus a few unrelated changes (DEPENDS packaging change, pre-commit config, local-build script, token-recovery binary, go.mod churn). With your standing OK for maintainer-side rebases, the branch was rebased onto rewritten main.

New head 1f03a67 carries exactly your two fixes + CHANGELOG entries:

1. 90-tollgate-captive-portal-symlink — stub redirect now appends location.search (clientmac passthrough)
2. 99-tollgate-setup — sessiontimeout='86400', authidletimeout='3600'

Shell syntax verified; go build clean. Since you flagged that these are uci-defaults changes needing on-hardware validation — an e2e cloud-lab run (OpenWrt VM, full payment suite + post-install NDS config verification) is in flight on this head; results will be posted here. If you'd rather rebase yourself or drop anything else, feel free to force-push over it.

[Amperstrand]

E2E results (follow-up to review): deployed head 6c96425 as ci-pr-363.197.6c96425 (ipk built by CI from this branch + a ci-only workflow patch) on an OpenWrt x86_64 QEMU lab:

Suite	Result
api/test_quote_persistence	4/4 passed
api/test_lightning_backoff	3/3 passed
api/test_payment_regression (e2e Cashu payment, local FakeWallet mint)	3/3 passed

Both fixes validated on-router:

• uci get nodogsplash...sessiontimeout → 86400, authidletimeout → 3600 after a full setup run (values confirmed absent on the pre-fix image — NDS defaults apply, exactly the bug described).
• The stub redirect now carries + location.search (verified present in the shipped 90-tollgate-captive-portal-symlink).

⚠️ One finding for your consideration (non-blocking): the new uci values only apply on the full setup path. 99-tollgate-setup early-exits to "verify wireless APs only" when /etc/tollgate-setup-done matches SETUP_VERSION — which is still v0.6.2 in this PR. Existing routers that reinstall/upgrade will not receive the sessiontimeout ceilings until SETUP_VERSION is bumped (the repo has done exactly this for prior fixes, e.g. the v0.6.2 bump). Recommend bumping it in this PR or a follow-up before release.

Approving — thanks for the fix. (Lab note: SHC cloud was unavailable for nested-virt reasons, so this ran on the local QEMU virtual lab; the deployed ipk is the CI-built artifact.)

[Amperstrand]

Both fixes verified end-to-end on a deployed OpenWrt VM (details in the E2E comment). The SETUP_VERSION-bump note is the only suggestion — merge at your discretion.
