CCRelay

VSCode Extension License: MIT

CCRelay is a VS Code extension — with optional Electron and Tauri desktop apps — that bundles a local API proxy so you can seamlessly switch between AI providers (Anthropic, OpenAI, Gemini, etc.) without losing conversation context. Designed for Claude Code, Claude Cowork, and OpenAI Codex.

Website: https://ccrelay.inflab.org

中文文档


Table of Contents


Core Features

Proxy & Routing

  • Built-in HTTP proxy (default http://127.0.0.1:7575) with path-based routing — forward to a provider, block with a custom response, or return 404
  • Multi-protocol: accepts Anthropic, OpenAI Chat Completions, and OpenAI Responses API (/v1/responses) on the same port
  • Automatic cross-protocol conversion when client and upstream wire formats differ
  • URL prefixes /openai/... and /anthropic/v1/... let different clients target the right protocol explicitly

Client Integrations

  • First-class support for Claude Code (ANTHROPIC_BASE_URL), Claude Cowork, and OpenAI Codex (~/.codex/config.toml)
  • Web dashboard Client configuration tab writes the right env vars for you

Operations

  • Multi-instance coordination (Leader/Follower) across VS Code windows and the desktop app
  • Config hot-reload — edits to config.yaml are picked up automatically
  • Optional request/response logging (SQLite or PostgreSQL) with a built-in log viewer, token tracking, and performance metrics (TTFB, output TPS, P50/P90 latency)
  • Concurrency control with per-route queue limits

Desktop & UI

  • Optional Electron or Tauri desktop app — run CCRelay without VS Code
  • Web dashboard with provider management, settings, and i18n (English + Chinese)
  • Provider import/export as JSON

External web search

  • Optional local handling of Anthropic-style web search tool traffic for provider IDs you allowlist, using Tavily or GLM (Z.ai) as the retrieval backend; configure in config.yaml or the dashboard Capabilities tab

Verified upstreams (by host)

Relaying uses the provider baseUrl hostname. The rows below are upstream endpoints we have validated when you add them as a provider. Vendors may offer Anthropic APIs, OpenAI-compatible APIs, or both — but your client protocol and the upstream protocol are often not the same. When they differ, CCRelay applies generic protocol conversion first, then hostname-specific alignment where we maintain it. When the wire looks the same on both sides, tooling still differs by vendor (for example Web Search Server Tools, strict Chat schemas, or Responses-only tools).

Hosts not listed get generic conversion only (no extra platform layer). Listed hosts get generic conversion plus platform rules for tools, messages, responses, and request URL/body quirks. The last column is where Web Search Server Tools are supported for that vendor; it does not depend on how you reach the relay.

Example — Azure OpenAI: Upstream Web Search Server Tools exist only on the Responses API (hence “Responses API only” in the Web Search Server Tools column). You can still point clients at CCRelay using the OpenAI Chat Completions surface. After you set Azure OpenAI as the provider baseUrl, Chat-shaped calls that include Web Search Server Tools are rewritten in the conversion layer into upstream Responses requests so search keeps working—you do not need the client to call /v1/responses itself.

Provider (target host) Anthropic /v1/messages OpenAI /chat/completions OpenAI /v1/responses Web Search Server Tools
Z.ai GLM (api.z.ai, open.bigmodel.cn) Supported Supported Not supported Supported
Xiaomi MiMo (api.xiaomimimo.com) Supported Supported Not supported Chat only
MiniMax (api.minimax.io, api.minimaxi.com) Supported Supported Not supported Not supported
Google Gemini (OpenAI-compatible, generativelanguage.googleapis.com) Not supported Supported Not supported Not supported
Azure OpenAI (*.cognitiveservices.azure.com) Not supported Supported Supported Responses API only
Other hosts Varies Varies Varies Generic conversion only

Screenshots (Claude Code through CCRelay)

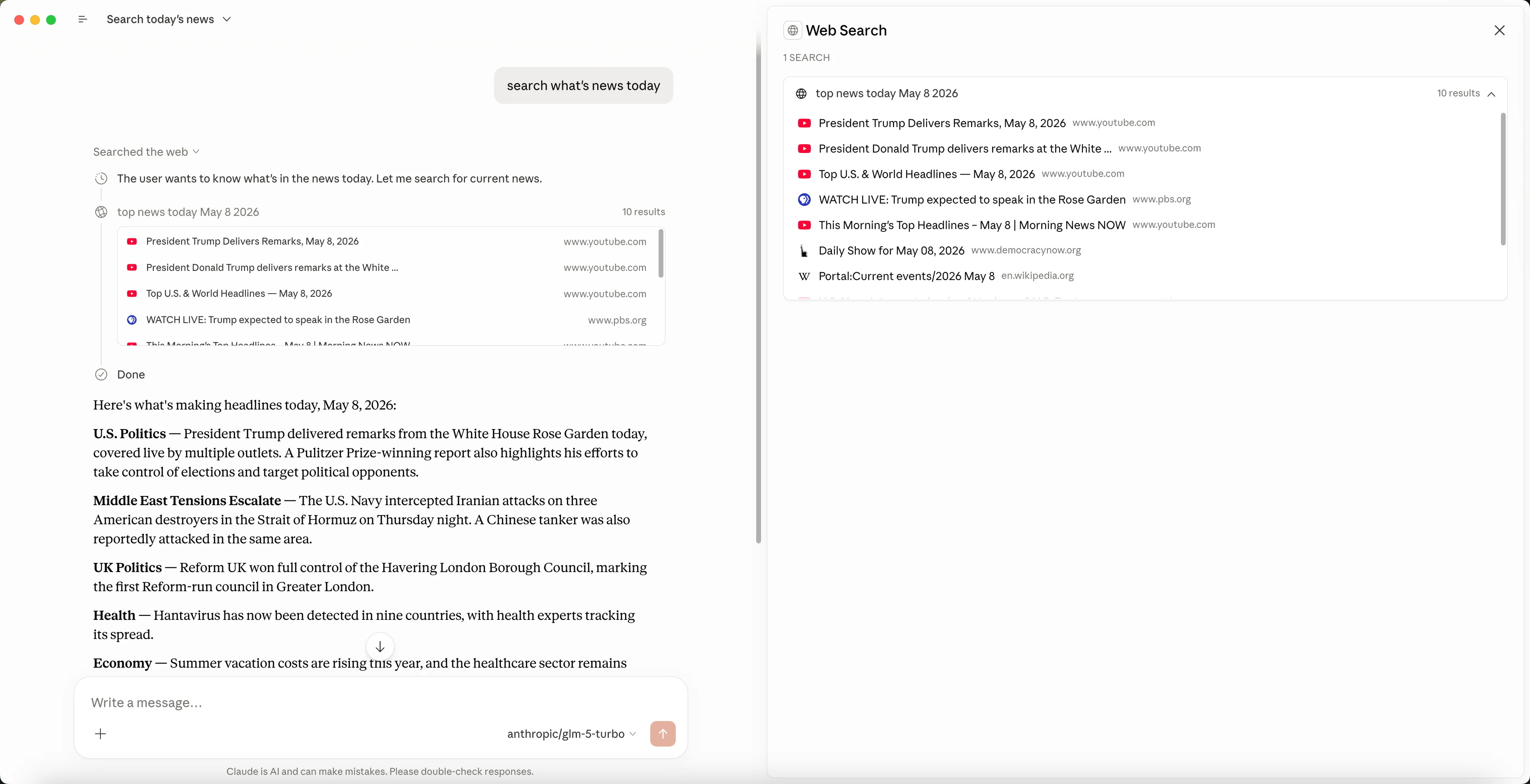

Claude Code — GLM Web Search Server Tools

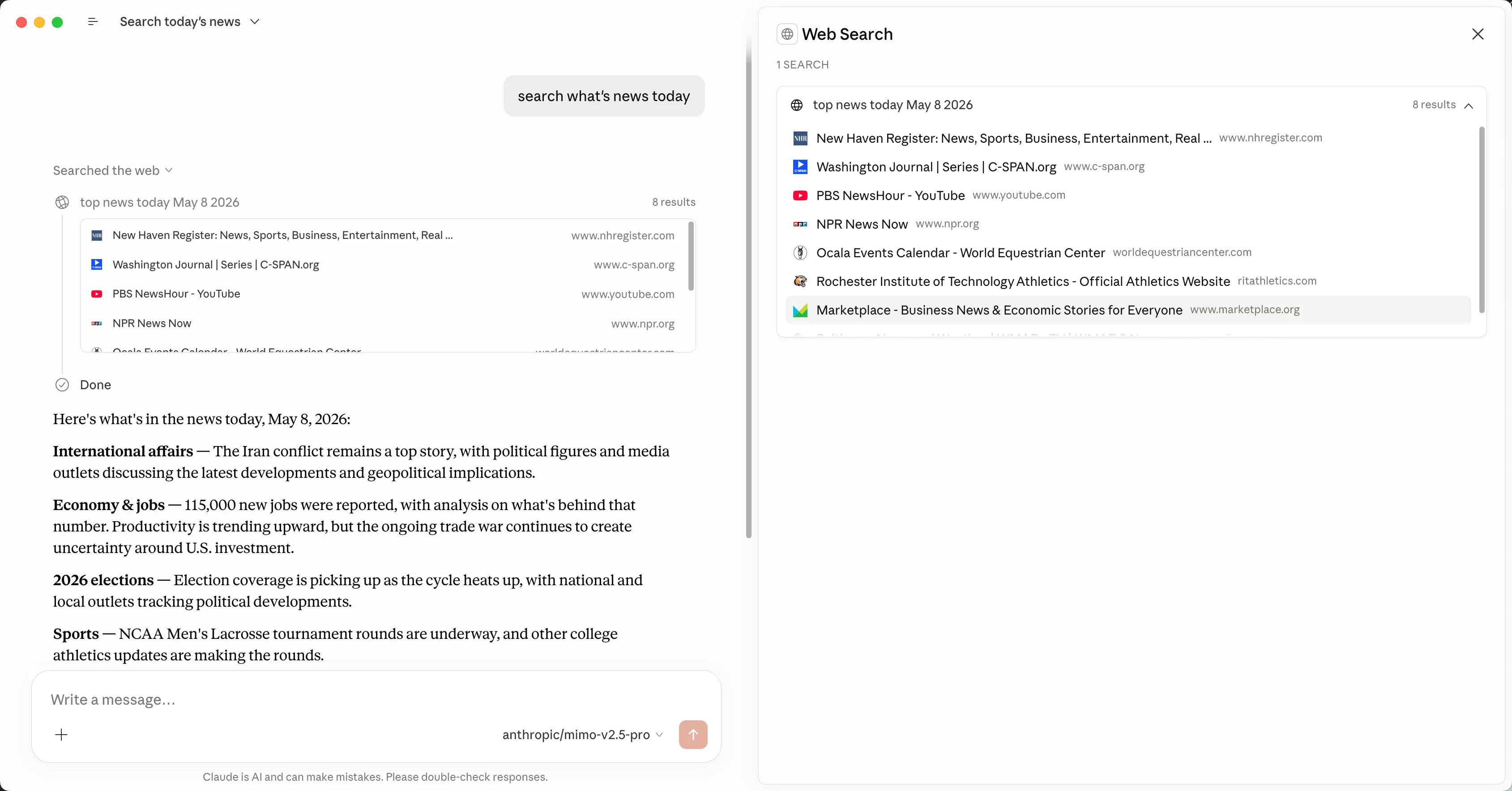

Claude Code — Xiaomi MiMo Web Search Server Tools


Requirements

  • VS Code 1.80.0 or higher
  • Node.js (for development)

Installation

Install from VSIX

  1. Download the latest .vsix from Releases
  2. In VS Code: Cmd+Shift+P (macOS) or Ctrl+Shift+PExtensions: Install from VSIX...
  3. Select the downloaded file

Build from Source

git clone https://github.com/inflaborg/ccrelay.git
cd ccrelay
npm install
npm run build
npm run package        # produces dists/ccrelay-vscode-*.vsix

Development Mode

npm install
npm run compile        # or npm run watch
# Press F5 in VS Code to launch Extension Development Host

Desktop App (Electron)

An optional Electron desktop app (packages/desktop) runs the same core as the VS Code extension:

  • Shares ~/.ccrelay/ config, state, and Leader election with the extension
  • Stores request logs with in-process SQLite (no system sqlite3 binary required for the default desktop build)
  • Tray menu → Open Dashboard loads the web UI in an app window; Open Logs Folder opens runtime diagnostics under ~/.ccrelay/logs/
  • Download from GitHub Releases:
    • macOS: CCRelay-<version>-darwin-arm64.dmg or -darwin-x64.dmg
    • Windows: CCRelay-<version>-win32-x64.exe or -win32-arm64.exe

Desktop App (Tauri)

A lightweight Tauri desktop app (packages/desktop-tauri) runs the same core as the VS Code extension and Electron app:

  • Shares ~/.ccrelay/ config, state, and Leader election with all other instances
  • Sidecar layout: the Rust shell starts a bundled Node.js runtime shipped inside the installer (server scripts and native SQLite support live in app resources). End users do not install Node separately.
  • Same in-process SQLite request logging as the Electron desktop app
  • Tray menu with Start/Stop Server, Open Dashboard, and Open Logs Folder
  • Download from GitHub Releases:
    • Installer names follow the Electron desktop pattern (CCRelay-<version>-<platform>-<arch>.<ext>) with tauri added after the version (for example CCRelay-0.2.4-tauri-darwin-arm64.dmg, CCRelay-0.2.4-tauri-win32-x64.exe). Windows ships NSIS .exe only (no MSI).

Development

npm install
npm run tauri:dev         # Builds web UI + Node sidecar, then runs Tauri dev
npm run tauri:pack:mac    # Production macOS installer
npm run tauri:pack:win    # Production Windows installer

npm run tauri:build (run automatically before pack/dev) bundles the sidecar JavaScript, copies the native SQLite module, and places a Node binary next to the Tauri external sidecar slot. Use Node.js 22 when building from source (matches CI).


Quick Start

1. Add a provider

Edit ~/.ccrelay/config.yaml (auto-created on first launch):

providers:
  glm:
    name: "Z.AI-GLM-5"
    baseUrl: "https://api.z.ai/api/anthropic"
    mode: "inject"
    apiKey: "${GLM_API_KEY}"
    modelMap:
      - pattern: "claude-opus-*"
        model: "glm-5"
      - pattern: "claude-sonnet-*"
        model: "glm-5"
      - pattern: "claude-haiku-*"
        model: "glm-4.7"
    enabled: true

defaultProvider: "glm"

2. Point Claude Code at CCRelay

Add to ~/.claude/settings.json:

{
  "env": {
    "ANTHROPIC_AUTH_TOKEN": "ccrelay_apikey_placehold_do_not_need_to_setup_here",
    "ANTHROPIC_BASE_URL": "http://localhost:7575/anthropic",
    "API_TIMEOUT_MS": "3000000",
    "CLAUDE_CODE_DISABLE_NONESSENTIAL_TRAFFIC": 1
  }
}

Optional per-tier model names — only needed if you want to override Claude Code's defaults:

{
  "env": {
    "ANTHROPIC_AUTH_TOKEN": "ccrelay_apikey_placehold_do_not_need_to_setup_here",
    "ANTHROPIC_BASE_URL": "http://localhost:7575/anthropic",
    "API_TIMEOUT_MS": "3000000",
    "CLAUDE_CODE_DISABLE_NONESSENTIAL_TRAFFIC": 1,
    "ANTHROPIC_DEFAULT_OPUS_MODEL": "claude-opus-4-7",
    "ANTHROPIC_DEFAULT_SONNET_MODEL": "claude-sonnet-4-6",
    "ANTHROPIC_DEFAULT_HAIKU_MODEL": "claude-haiku-4-5"
  }
}

You can also set these from the Web dashboard: Client configuration tab.

3. Switch providers

  • Click the CCRelay icon in the VS Code status bar
  • Or Command Palette: CCRelay: Switch Provider

Client Integrations

CCRelay exposes both Anthropic and OpenAI compatible routes on the same port (default 7575). Use URL prefixes to pick the right protocol:

Client Protocol Base URL
Claude Code Anthropic http://127.0.0.1:7575/anthropic
Claude Cowork Anthropic http://127.0.0.1:7575/anthropic
Codex OpenAI http://127.0.0.1:7575/openai

Legacy /v1/... paths still work when pointed at http://127.0.0.1:7575 directly.

Claude Code

See Quick Start for the recommended ~/.claude/settings.json config.

Quick test (current shell only):

export ANTHROPIC_BASE_URL=http://127.0.0.1:7575/anthropic
claude

Claude Cowork

Set the app's Anthropic Base URL to http://127.0.0.1:7575/anthropic. Switch providers via the CCRelay extension or config.yaml.

Codex

Create or edit ~/.codex/config.toml:

model = "gpt-5.4-mini"
model_provider = "ccrelay"

[model_providers.ccrelay]
name = "CCRelay"
base_url = "http://localhost:7575/openai"

Adjust model to one your CCRelay provider can route (via modelMap).


Usage Guide

Multi-Instance Mode

When multiple VS Code windows are open:

  • One instance becomes the Leader and runs the HTTP server; others are Followers
  • Leader broadcasts provider changes to Followers via WebSocket
  • If the Leader exits, a Follower takes over automatically
  • Status bar shows role: $(broadcast) = Leader, $(radio-tower) = Follower

Logging: request logs are persisted only by the Leader. Followers proxy log API calls to the Leader; if the Leader is unreachable, those calls return 503.

IPC lock (~/.ccrelay/ccrelay-lock.sock on Unix/macOS, named pipe on Windows) coordinates Leader election across VS Code and the desktop app.

Provider Modes

Mode Auth behavior Use case
passthrough Preserves original auth headers Official Claude API with OAuth
inject Replaces auth with provider API key Third-party providers (GLM, OpenRouter, etc.)

Model Mapping

Map Claude model names to provider-specific models with wildcard support:

modelMap:
  - pattern: "claude-opus-*"
    model: "glm-5"
  - pattern: "claude-sonnet-*"
    model: "glm-4.7"

Vision model mapping — separate mapping for multimodal requests:

vlModelMap:
  - pattern: "claude-*"
    model: "vision-model"

modelMap applies only to request bodies (model field). GET /models responses are not rewritten.

Claude Desktop / Cowork Model ID Restrictions

Starting from Claude Desktop 1.7196.0, the client rejects model IDs that contain third-party keywords such as qwen, glm, kimi, deepseek, etc. If you use third-party upstream models, map them to claude- prefixed aliases for Cowork only.

The alias must be claude- followed by a single token without additional hyphens (e.g. claude-a1, not claude-my-model), because multi-hyphen names are parsed as Anthropic model versions.

Custom model list (customModelsList): each line is realModelId;displayName;alias (or realModelId;;alias when display equals the real id). The real id is what upstream expects; alias is the Cowork-safe id.

Cowork: In Claude Desktop, add a custom request header x-ccrelay-model-alias with any value (for example 1). With this header, GET /models and GET /models/{id} return alias as the wire id. Without the header, the same list returns real model ids (for other clients).

Model mapping (modelMap): map each alias to the real upstream model id. Place specific rules before wildcard claude-* / gpt-* catch-alls.

Example -- two GLM models; Cowork uses aliases via the header above:

glm:
  name: "GLM"
  baseUrl: "https://api.z.ai/api/paas/v4"
  providerType: "openai_chat"
  mode: "inject"
  apiKey: "${GLM_API_KEY}"
  useCustomModelsList: true
  customModelsList:
    - "glm-5.1;GLM 5.1;claude-a1"
    - "glm-4.7;GLM 4.7;claude-a2"
  modelMap:
    - { pattern: "claude-a1", model: "glm-5.1" }
    - { pattern: "claude-a2", model: "glm-4.7" }
    - { pattern: "claude-*", model: "glm-5.1" }
    - { pattern: "gpt-*", model: "glm-5.1" }

With this configuration:

  • Without x-ccrelay-model-alias: GET /models returns glm-5.1 and glm-4.7 (with display names when they differ from the id).
  • With x-ccrelay-model-alias: GET /models returns claude-a1 / claude-a2 as ids; Cowork selects those; CCRelay maps them to real upstream ids via modelMap.
  • The claude-* and gpt-* wildcards catch any other model names the client may send and route them to the first model.

The built-in wizard writes realId;displayName;claude-{hash} lines and matching modelMap entries. Add x-ccrelay-model-alias in Claude Desktop for Cowork; omit it elsewhere.

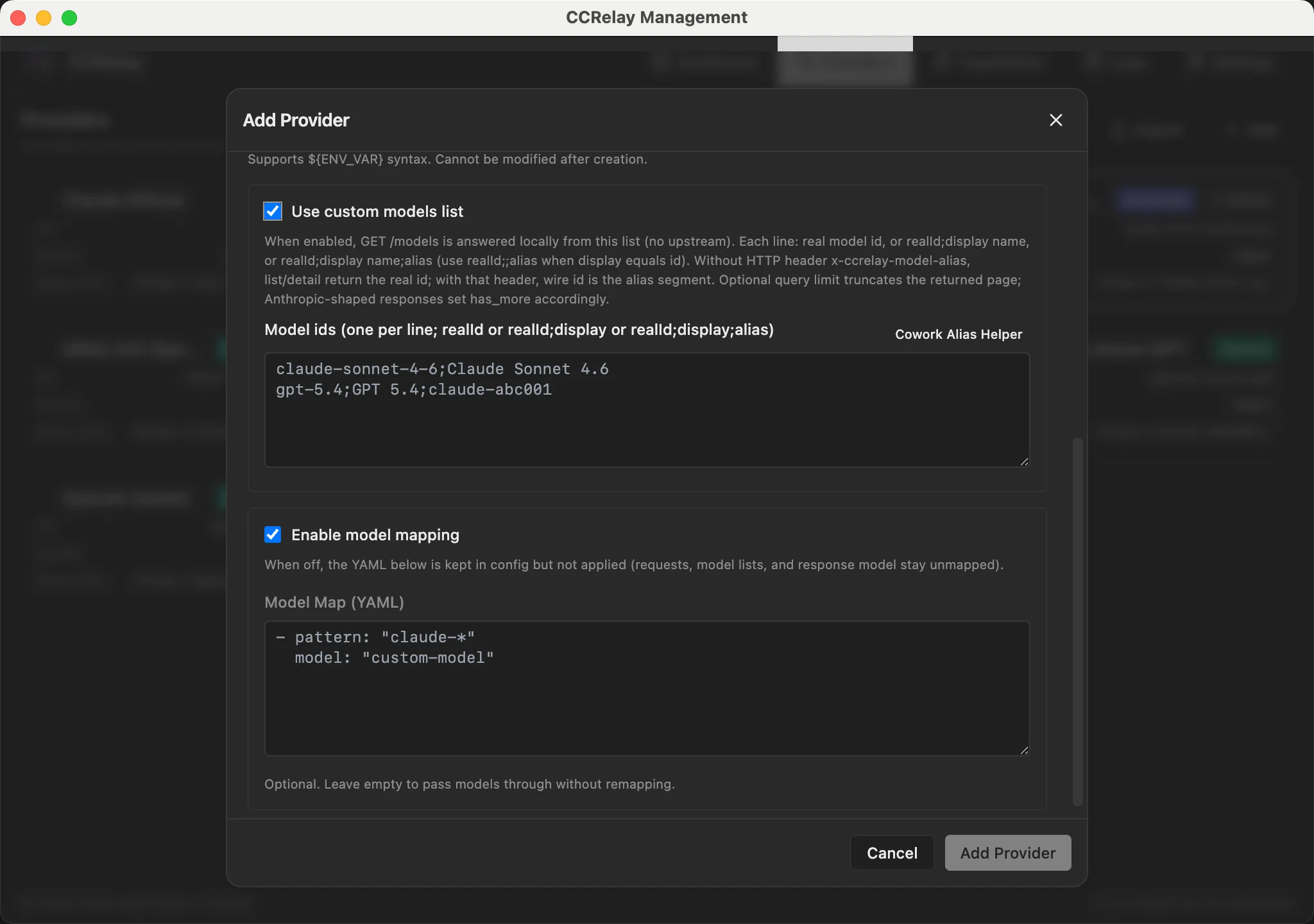

Custom model list configuration UI

Custom model list

Use Quick fill custom models to enter upstream model IDs and display names in a structured form; the custom model list and model map are generated automatically.

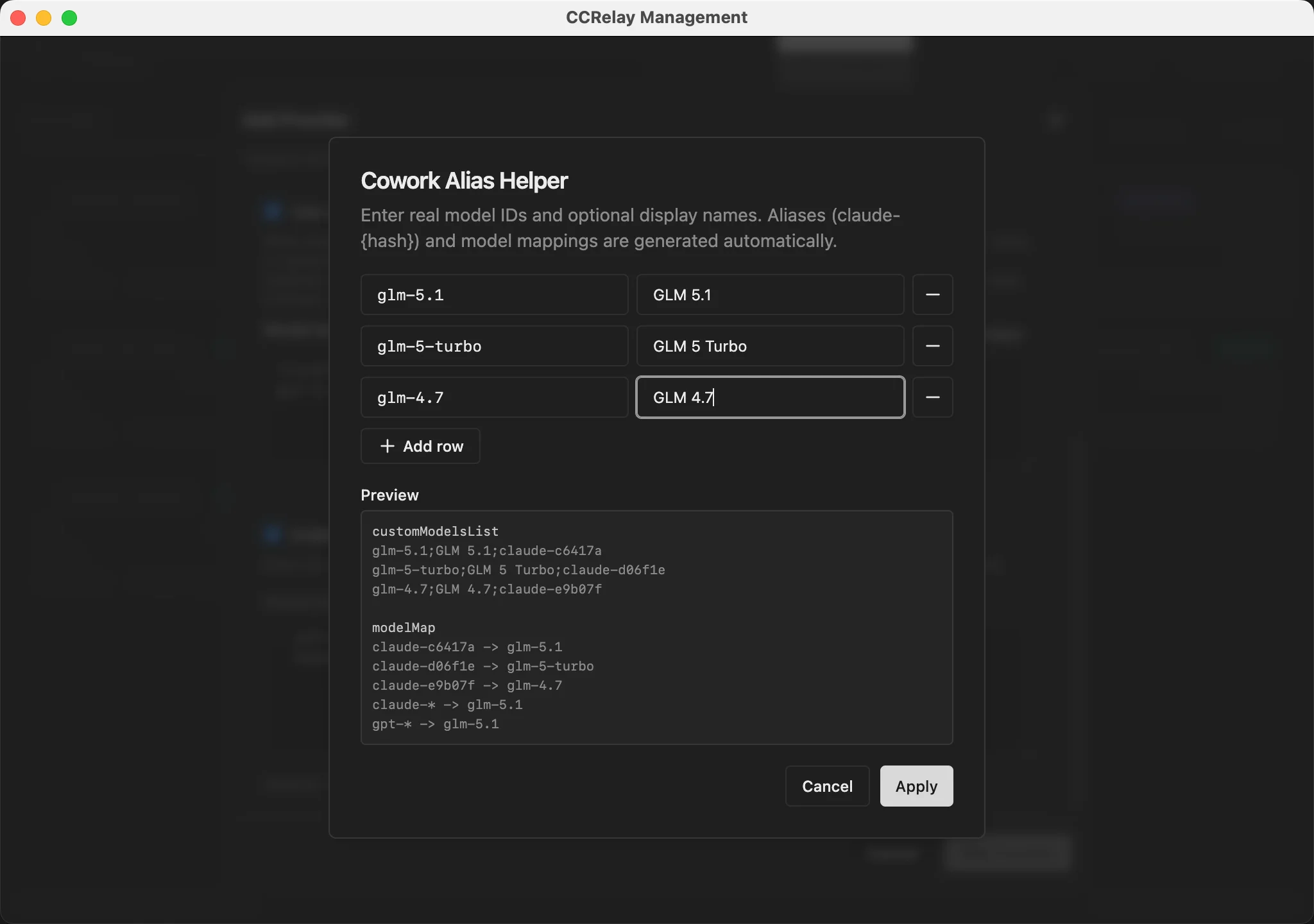

Quick fill custom models

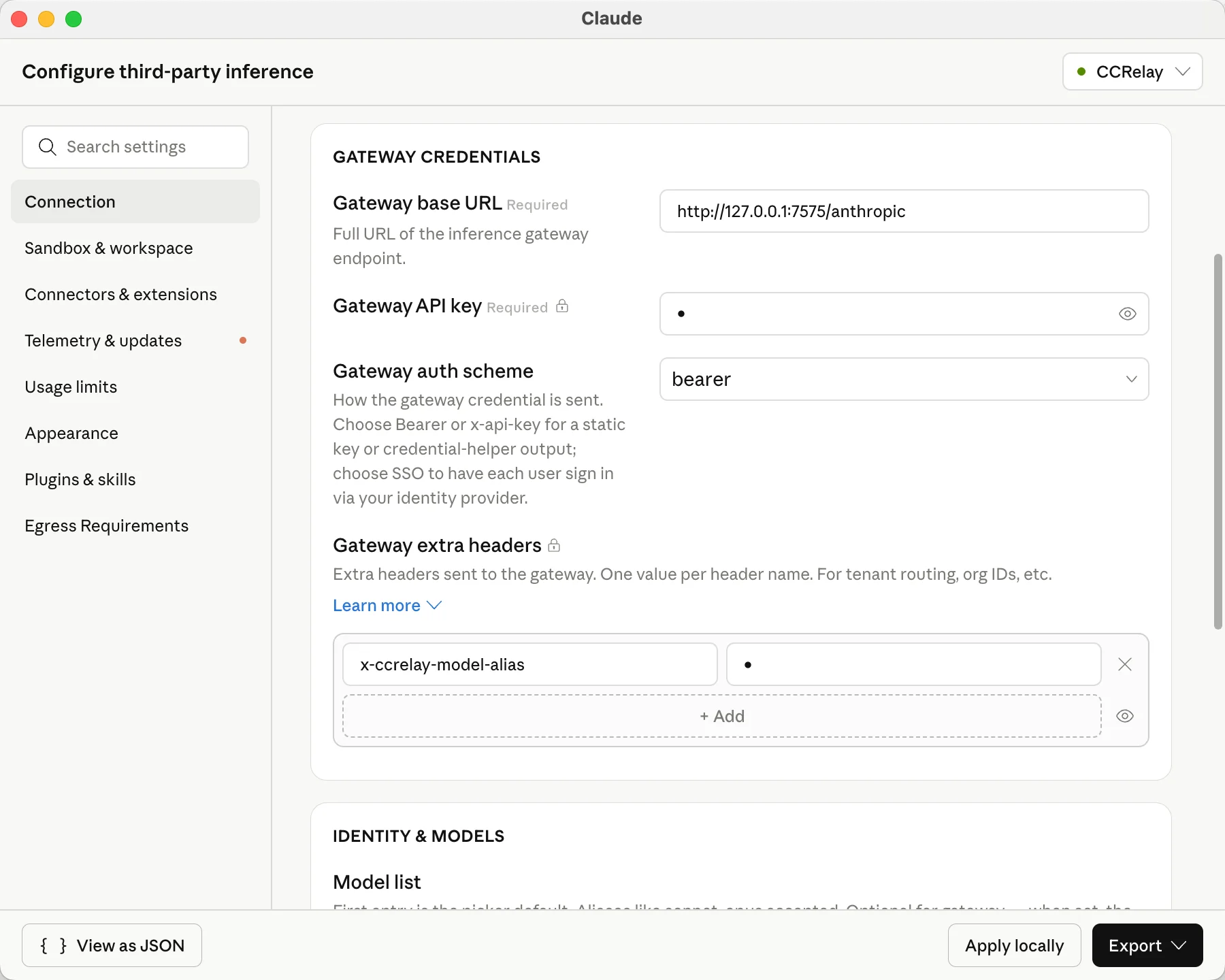

Enabling alias in Claude Cowork

In Claude Desktop's Configure third-party inference panel, add x-ccrelay-model-alias to Gateway extra headers so that the model list returns aliases instead of real IDs.

Cowork gateway extra headers

OpenAI Format Conversion

CCRelay accepts three inbound protocols and converts when the upstream provider speaks a different wire:

Inbound path Client protocol
/v1/messages, /anthropic/v1/messages Anthropic Messages
/v1/chat/completions, /openai/chat/completions OpenAI Chat Completions
/v1/responses OpenAI Responses API
/v1/models, /openai/models OpenAI models list
/anthropic/v1/models Anthropic models list

Conversion rules:

  • Same family on both sides (e.g. Chat + openai provider) → passthrough (model mapping and auth still apply)
  • Cross-family → request/response body conversion via Chat Completions hub
  • GET /models → list format converted when entry path and providerType disagree; upstream errors forwarded as-is

Streaming limitations:

  • Cross-protocol paths force stream: false for conversion. If the client sends stream: true, CCRelay synthesizes a minimal SSE envelope so the client SDK can finish; model output arrives in the final payload, not token-by-token.
  • Same-family streaming passes through normally.

Example: OpenAI-compatible provider (Gemini)

gemini:
  name: "Gemini"
  baseUrl: "https://generativelanguage.googleapis.com/v1beta/openai"
  providerType: "openai"
  mode: "inject"
  apiKey: "${GEMINI_API_KEY}"
  modelMap:
    - pattern: "claude-*"
      model: "gemini-2.5-pro"

Web UI Dashboard

Built-in web dashboard accessible via Command Palette → CCRelay: Open Dashboard (VS Code) or tray menu → Open Dashboard (desktop app).

  • Dashboard — server status, current provider, token usage, performance metrics (TTFB, P50/P90 latency, output TPS) with time range selector
  • Providers — view, switch, duplicate, import/export providers
  • Capabilities — optional web search backends (Tavily and/or GLM (Z.ai)): API keys, GLM endpoint and protocol, default backend, and which providers answer web search locally
  • Logs — request/response log viewer with token columns, TTFB, output TPS, and model mapping display (hidden when logging is disabled)
  • Settings — manage YAML config in the UI; routing and concurrency hot-reload on save, server and logging changes require a restart
  • Client configuration — write Claude Code env vars and Codex config from the UI

Note: The dashboard is not accessible by directly opening http://127.0.0.1:7575/ccrelay/ in a browser. Access is restricted to requests originating from within the VS Code extension or the desktop app, which include an internal header. Open the dashboard via the extension command or the desktop tray menu instead.

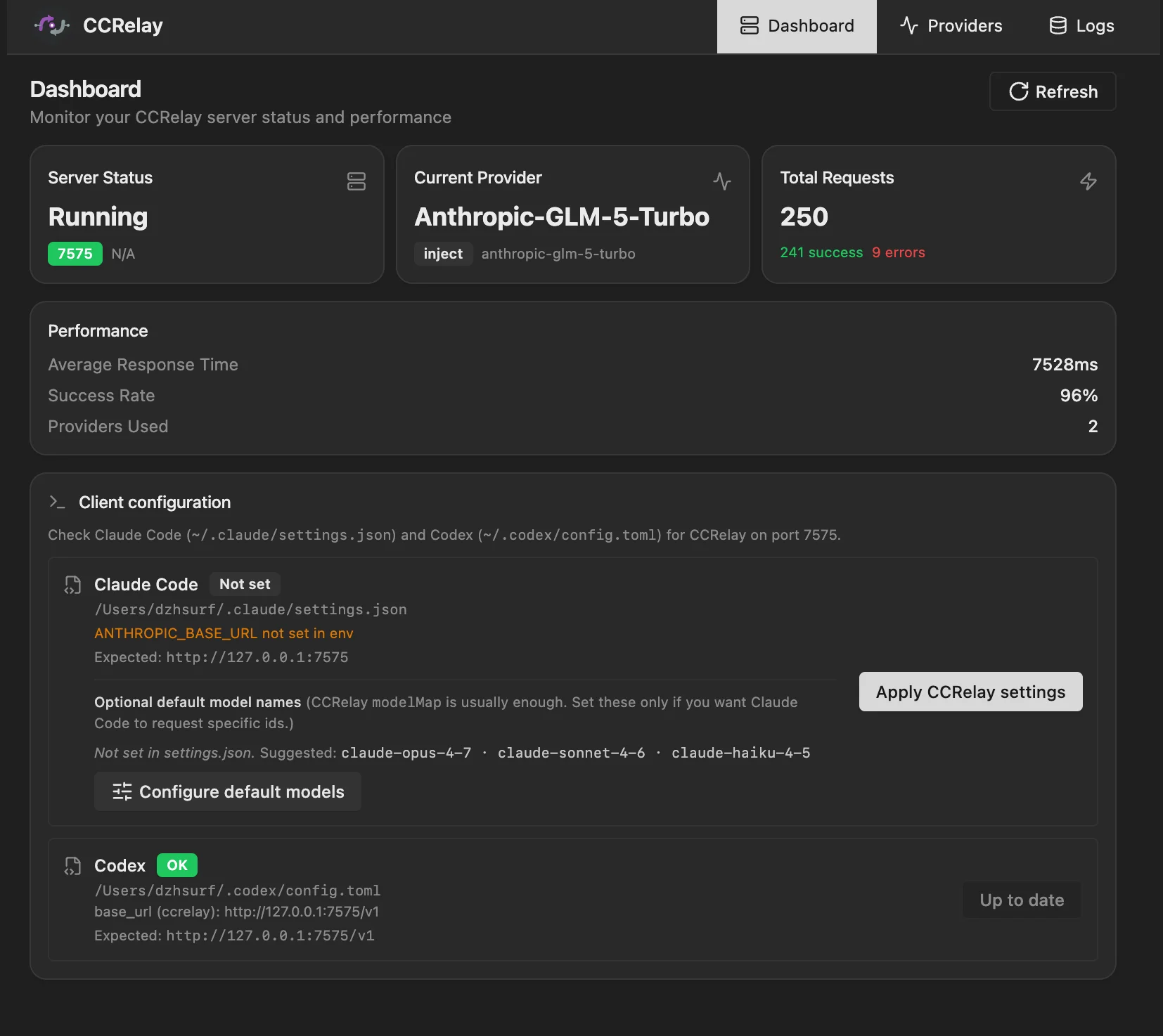

Web UI

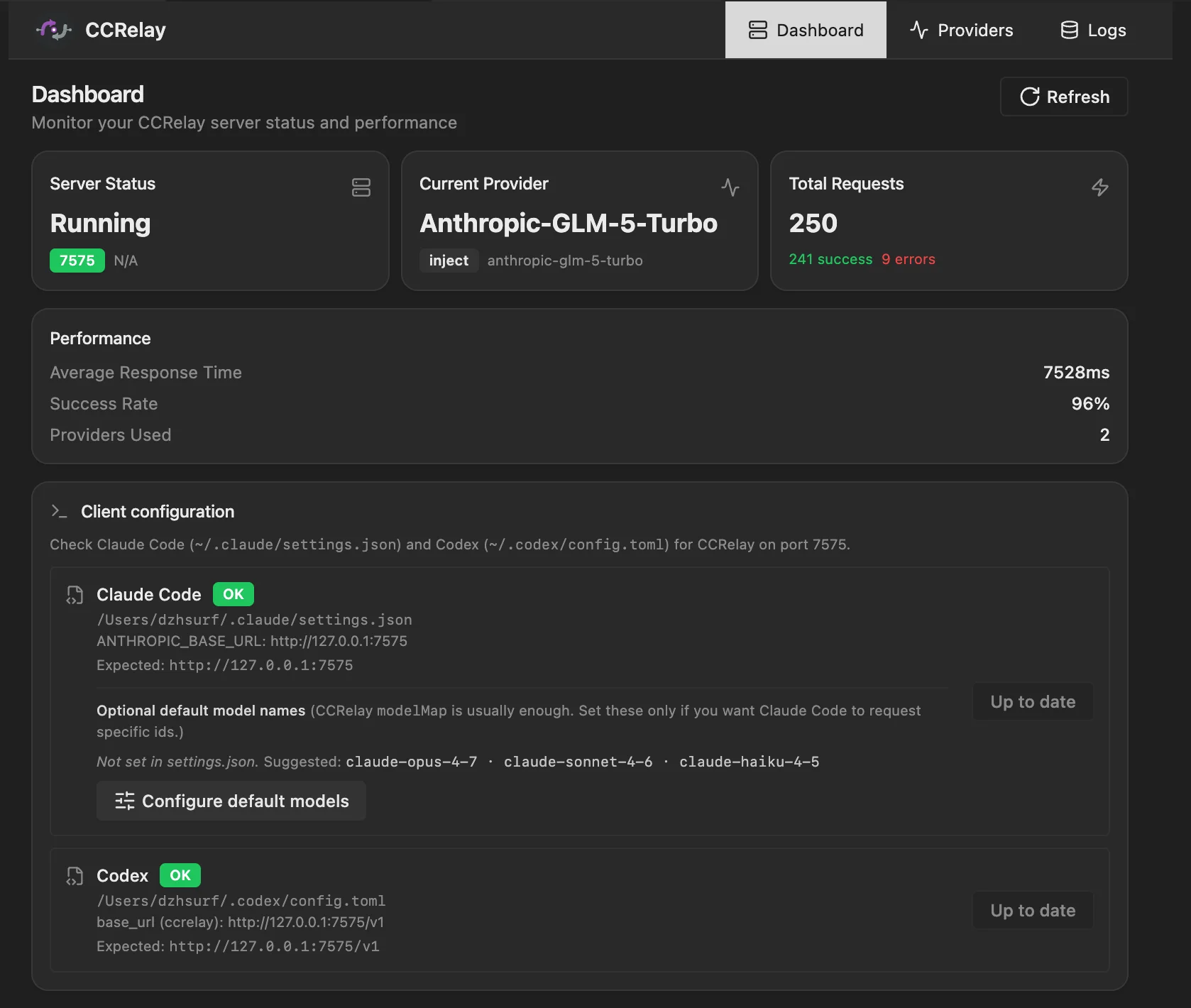

Client configuration

Configure default models

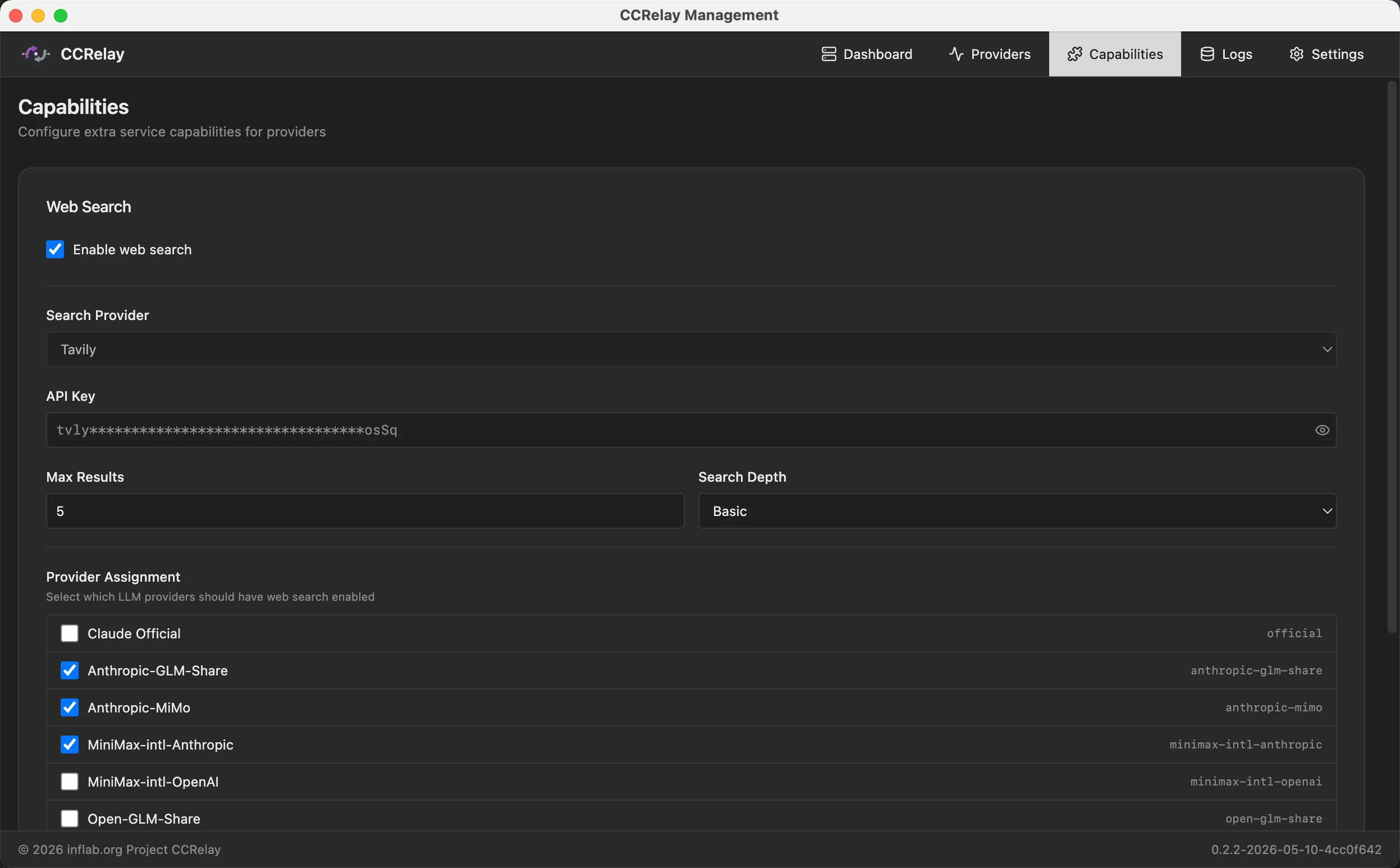

Capabilities — Tavily web search

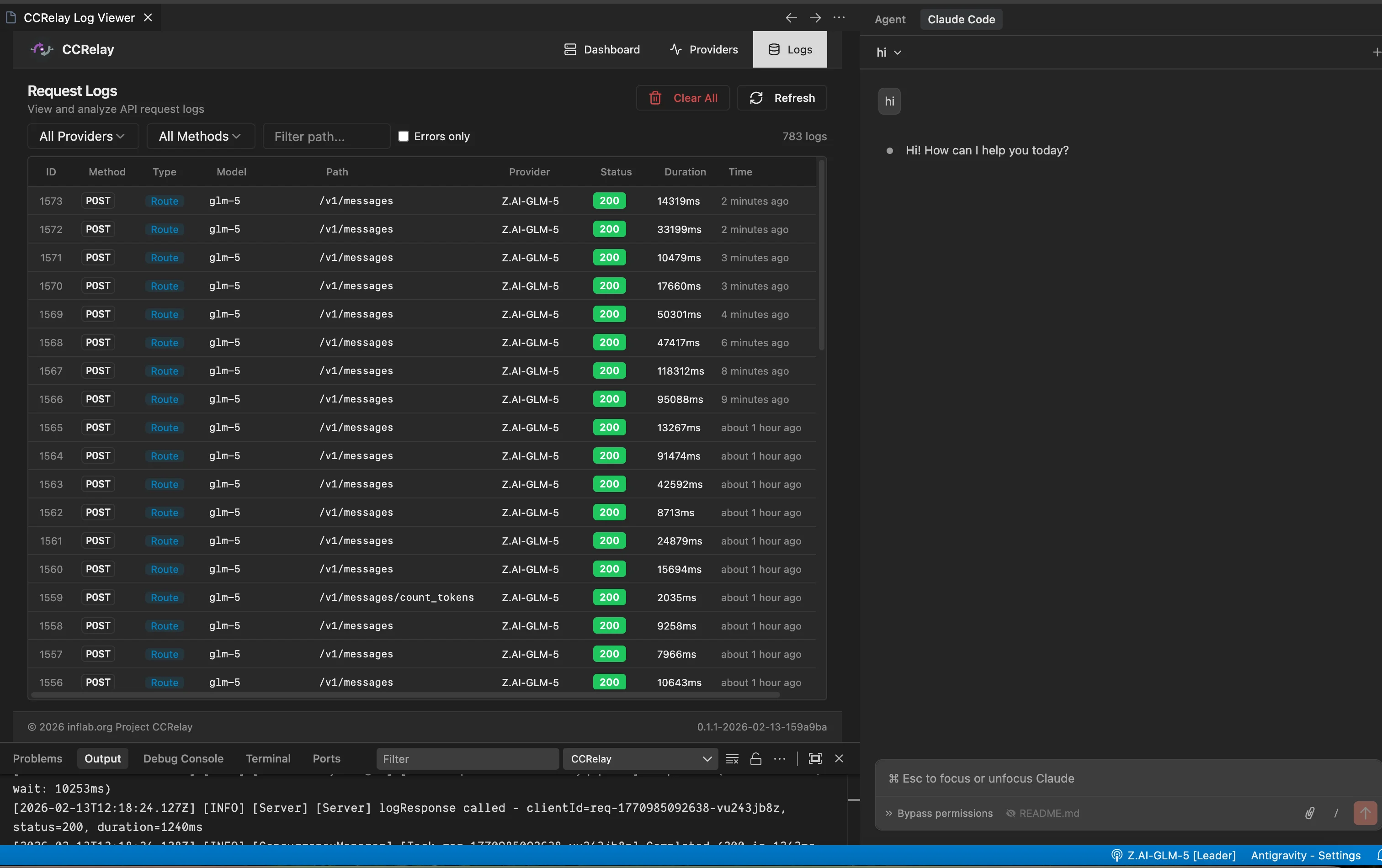

Request Logs

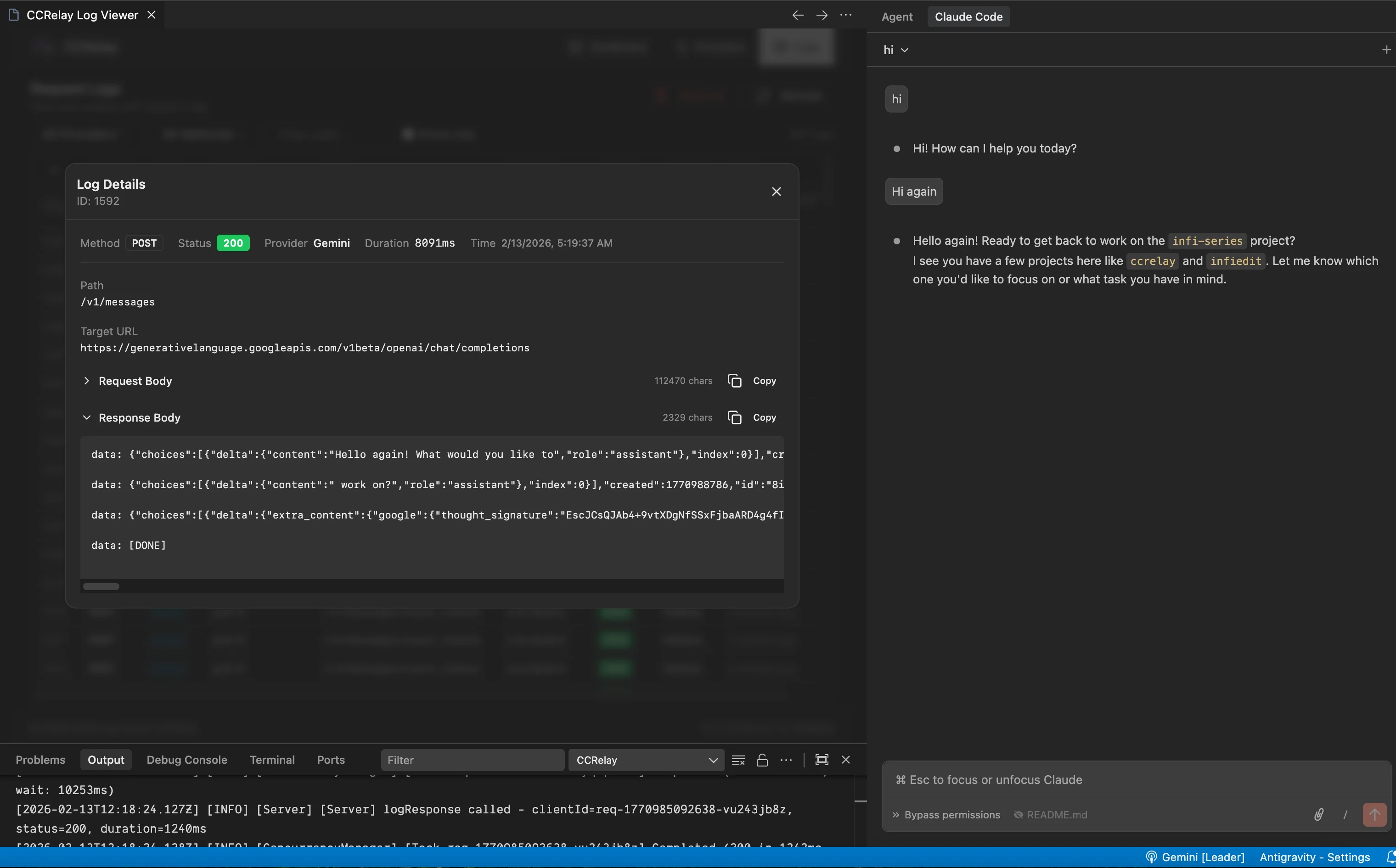

Log Details

Desktop app

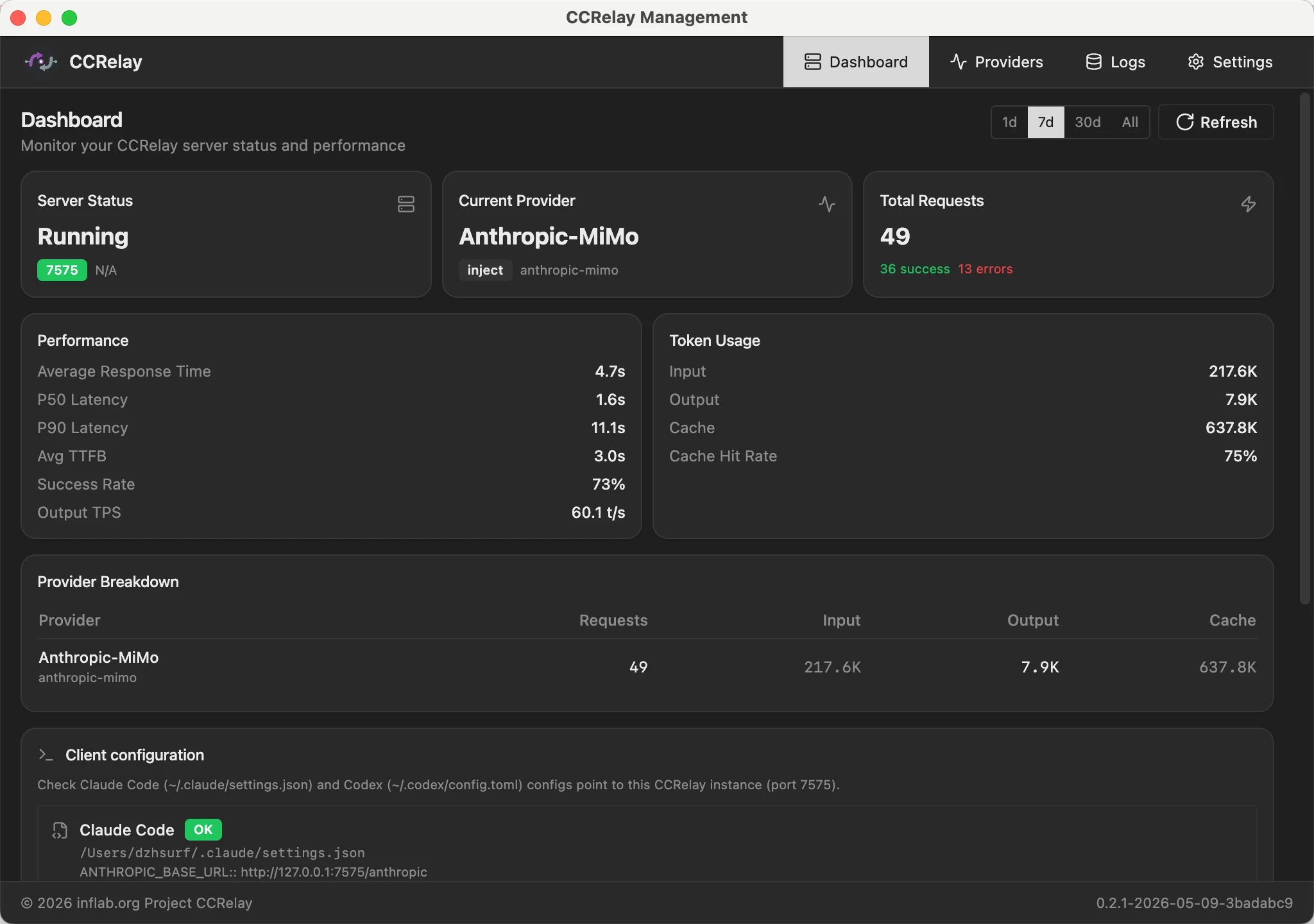

Desktop — Dashboard

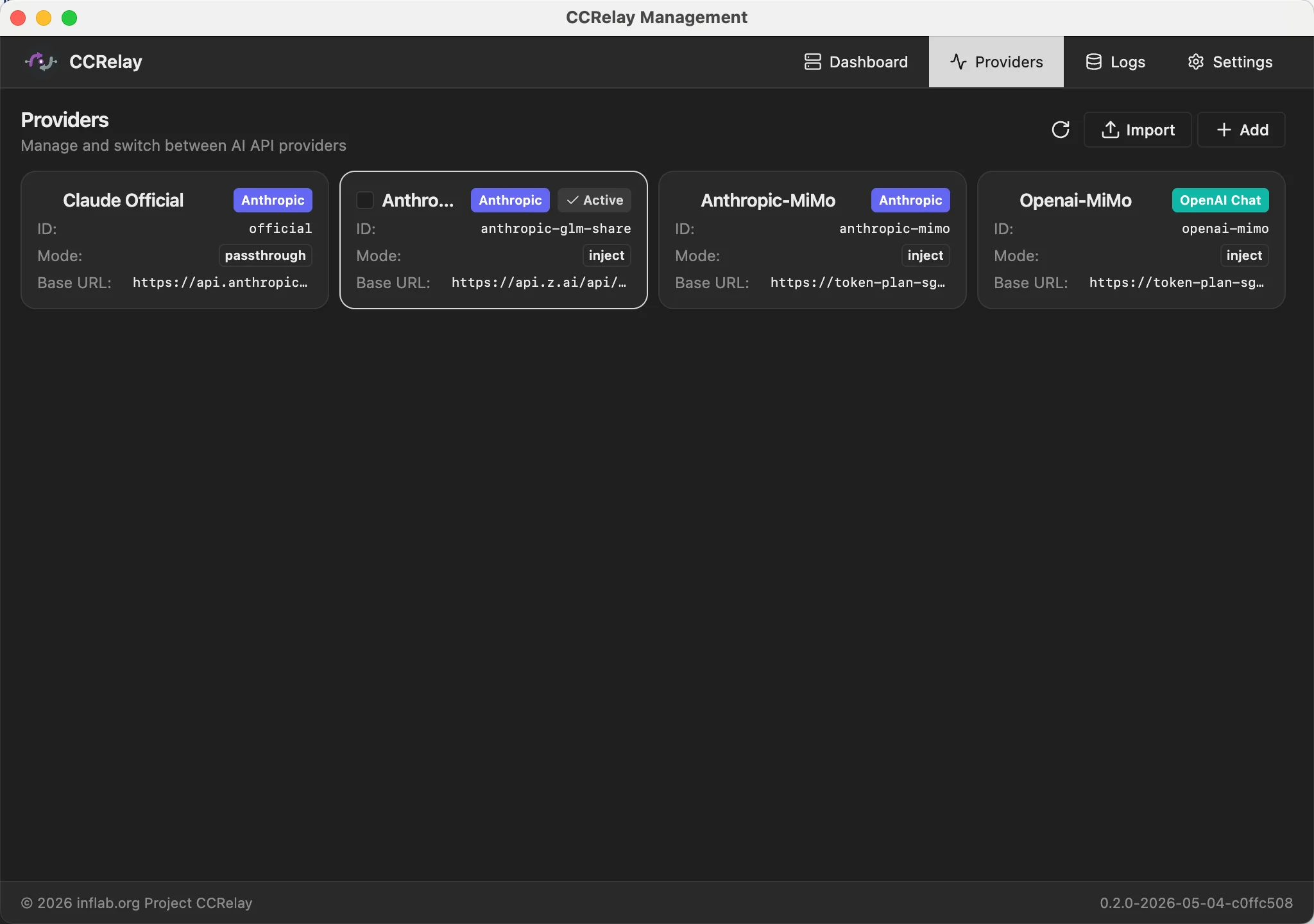

Desktop — Provider list


Configuration

CCRelay uses ~/.ccrelay/config.yaml (auto-created on first launch). On startup the bundled defaults are merged with your file — your values always win, missing keys are filled from defaults. List sections (routing.forward, routing.block, concurrency.routes) merge by identity key, with your rows first and new defaults appended. Omit a list to inherit full defaults; set [] for intentionally empty.

YAML config supports both camelCase and snake_case keys.

Server

Setting Default Description
server.port 7575 Proxy server port
server.host 127.0.0.1 Bind address
server.autoStart true Auto-start server on extension load
server.locale "" Web UI language ("en" or "zh"). First visit shows a picker if unset.

Providers

Setting Default Description
defaultProvider official Default provider ID
providers {...} Provider map (see below)

Each provider supports:

Field Default Description
name Display name
baseUrl API base URL
mode "passthrough" passthrough (keep auth) or inject (replace auth)
providerType "anthropic" "anthropic", "openai" (full passthrough), or "openai_chat" (Chat Completions only)
apiKey API key for inject mode. Supports ${ENV_VAR}.
authHeader "authorization" Auth header name
modelMap Model name mappings ([{pattern, model}], wildcards supported)
vlModelMap Vision model mappings (for multimodal requests)
headers Custom request headers
enabled true Enable/disable

Routing

Setting Default Description
configVersion "0.2.0" Config schema version. Legacy configs auto-migrated.
routing.forward [{path, provider}] Forward rules — first match wins. provider: "auto" = current provider. Unmatched → 404.
routing.block [{path, response, code, condition?}] Block rules — return custom response. Optional condition.providers (allowlist) and condition.providerNot (exclusion list).

Concurrency

Setting Default Description
concurrency.enabled true Enable request queue
concurrency.maxWorkers 3 Max concurrent requests
concurrency.maxQueueSize 100 Max queued requests (0 = unlimited)
concurrency.requestTimeout 60 Queue timeout in seconds (0 = unlimited)
concurrency.routes [] Per-route queue config (by pattern)

Logging

Setting Default Description
logging.enabled false Enable request logging
logging.database.type "sqlite" "sqlite" or "postgres"

SQLite:

Setting Default Description
logging.database.path "" DB file path (empty = ~/.ccrelay/logs.db)
logging.database.sqlite3_executable "" Path to sqlite3 binary (empty = resolve from PATH)

If sqlite3 cannot be resolved, the proxy runs without log persistence (warning in logs).

PostgreSQL:

Setting Default Description
logging.database.host localhost Server host
logging.database.port 5432 Server port
logging.database.name ccrelay Database name
logging.database.user "" Username
logging.database.password "" Password (supports ${ENV_VAR})
logging.database.ssl false Enable SSL

External web search

Optional local handling of Anthropic-style web search (server tool) requests for selected providers. CCRelay can run live retrieval through Tavily or through a GLM (Z.ai) search-capable model endpoint, then return a synthesized assistant response for that turn so the upstream chat model does not need to implement the tool itself.

Setting Description
webSearch.enabled Master switch (true / false). When omitted, non-empty providers means on.
webSearch.providers Provider IDs (keys under providers:) assigned to web search (kept when disabled).
webSearch.defaultSearchBackend Optional: tavily or glm (defaults when not inferred per request).

Tavily

Setting Description
webSearch.tavily.apiKey Tavily API key. Supports ${ENV_VAR}.
webSearch.tavily.searchDepth basic or advanced (optional).
webSearch.tavily.maxResults Number of results, 1–10 (optional).

GLM (Z.ai)

Setting Description
webSearch.glm.apiKey Z.ai API key. Supports ${ENV_VAR}.
webSearch.glm.endpoint Optional override; otherwise derived from protocol, region, and coding.
webSearch.glm.protocol openai (Chat Completions) or anthropic (Messages).
webSearch.glm.region intl or cn.
webSearch.glm.coding Optional: prefer coding-oriented GLM host when the default endpoint is used.
webSearch.glm.model Optional model id (defaults apply when omitted).

You may use the top-level key web_search instead of webSearch (same nested shape).

webSearch:
  tavily:
    apiKey: "${TAVILY_API_KEY}"
    searchDepth: basic
    maxResults: 5
  glm:
    apiKey: "${GLM_API_KEY}"
    protocol: openai
    region: intl
  defaultSearchBackend: tavily
  enabled: true
  providers:
    - glm

Set enabled: false to turn off web search without clearing the providers preset list.

Edit the same fields from the dashboard Capabilities tab.

Full Example

configVersion: "0.2.0"

server:
  port: 7575
  host: "127.0.0.1"
  autoStart: true

providers:
  official:
    name: "Claude Official"
    baseUrl: "https://api.anthropic.com"
    mode: "passthrough"
    providerType: "anthropic"
    enabled: true

  glm:
    name: "Z.AI-GLM-5"
    baseUrl: "https://api.z.ai/api/anthropic"
    mode: "inject"
    apiKey: "${GLM_API_KEY}"
    modelMap:
      - pattern: "claude-opus-*"
        model: "glm-5"
      - pattern: "claude-sonnet-*"
        model: "glm-5"
      - pattern: "claude-haiku-*"
        model: "glm-4.7"
    enabled: true

  gemini:
    name: "Gemini"
    baseUrl: "https://generativelanguage.googleapis.com/v1beta/openai"
    providerType: "openai"
    mode: "inject"
    apiKey: "${GEMINI_API_KEY}"
    modelMap:
      - pattern: "claude-*"
        model: "gemini-2.5-pro"
    enabled: true

defaultProvider: "official"

routing:
  forward:
    - path: "/v1/messages"
      provider: "auto"
    - path: "/v1/chat/completions"
      provider: "auto"
    - path: "/v1/responses"
      provider: "auto"
    - path: "/v1/models"
      provider: "auto"
    - path: "/v1/messages/count_tokens"
      provider: "auto"
  block:
    - path: "/api/event_logging/*"
      response: ""
      code: 200
    - path: "/v1/messages/count_tokens"
      response: '{"input_tokens": 0}'
      code: 200

concurrency:
  enabled: true
  maxWorkers: 3
  maxQueueSize: 100
  requestTimeout: 60

logging:
  enabled: true
  database:
    type: "sqlite"
    path: ""

API Endpoints

Management endpoints at /ccrelay/:

Endpoint Method Description
/ccrelay/api/status GET Proxy status
/ccrelay/api/providers GET List providers
/ccrelay/api/switch/{id} GET Switch to provider
/ccrelay/api/switch POST Switch provider (JSON body)
/ccrelay/api/providers/export POST Export providers by ID
/ccrelay/api/providers/import POST Import providers (merge by ID)
/ccrelay/api/queue GET Queue statistics
/ccrelay/api/logs GET Request logs
/ccrelay/api/config GET, PATCH Read/write config sections
/ccrelay/ws WebSocket Follower sync
/ccrelay/ GET Web UI dashboard

All other requests are proxied to the current provider.


Commands

Command ID Description
CCRelay: Show Menu ccrelay.showMenu Show main menu
CCRelay: Switch Provider ccrelay.switchProvider Provider picker
CCRelay: Start Server ccrelay.startServer Start server
CCRelay: Stop Server ccrelay.stopServer Stop server
CCRelay: Open Settings ccrelay.openSettings Extension settings
CCRelay: Show Logs ccrelay.showLogs Output logs
CCRelay: Clear Logs ccrelay.clearLogs Clear output logs
CCRelay: Open Dashboard ccrelay.openWebUI Web dashboard

Development

npm run compile        # Type-check
npm run watch          # Watch & recompile
npm run lint           # Lint
npm run format         # Format
npm run test           # Unit tests
npm run test:integration
npm run test:all
npm run test:coverage
npm run package        # Build VSIX
npm run build:dev      # Dev build
npm run build:prod     # Prod build

# Electron desktop app
npm run desktop:start
npm run desktop:pack:mac
npm run desktop:pack:win

# Tauri desktop app
npm run tauri:dev
npm run tauri:pack:mac
npm run tauri:pack:win

Project Structure

ccrelay/
├── packages/
│   ├── core/              # Shared runtime (proxy, config, converters)
│   ├── vscode/            # VS Code extension
│   ├── desktop/           # Electron desktop app
│   └── desktop-tauri/     # Tauri desktop app
├── web/                   # Web UI (React + Vite)
├── tests/                 # Vitest unit + integration
├── scripts/               # Build & packaging helpers
└── dists/                 # Packaged .vsix

File Locations

File Location Description
Config ~/.ccrelay/config.yaml Main config (auto-created)
State ~/.ccrelay/state.json Active provider ID
IPC lock ~/.ccrelay/ccrelay-lock.sock (Unix) / named pipe (Win) Leader election
Log DB ~/.ccrelay/logs.db Request logs (Leader only)

Contributing

Issues and Pull Requests are welcome!


Acknowledgments

This project is 100% AI-generated code. Special thanks to:


License

MIT License

Copyright (c) 2026 inflab.org

About

Local API proxy (VS Code extension + desktop app) for Claude Code, Cowork & Codex. Automatic protocol conversion — switch LLM providers without touching client config.

Topics

Resources

License

Stars

Watchers

Forks

Packages





Contributors
